Brazilian Navy — Cruiser
Brazilian cruiser Rio Grande do Sul
Service
- as Rio Grande Do Sul14 May 1910 — 19482,193 days of the war
Bahia-class cruiser
Particulars
- Name
- Rio Grande do Sul
- Namesake
- The Brazilian state of Rio Grande do Sul
- Builder
- Armstrong Whitworth
- Laid down
- 30 August 1907
- Launched
- 20 April 1909
- Commissioned
- 14 May 1910
- Decommissioned
- 1948
- Fate
- Scrapped
- Status
- Scrapped
Specifications
- Displacement, standard
- 3,051 long tons (3,100 t)
- Length
- 122.38 m (401.5 ft) OA
- Beam
- 11.91 m (39.1 ft)
- Draught
- 3.81 m (12.5 ft)
- Speed
- 27 knots (50 km/h, 31.1 mph)
- Complement
- 320
- Main gun
- 120 mm (4.7 in)
Rio Grande do Sul was a Bahia-class cruiser, operated by the Brazilian Navy. Armstrong Whitworth laid her keel on 30 August 1907. She entered service on 14 May 1910, having been launched on 20 April 1909.
Her class ran to two ships.
Displacement was 3,051 long tons. She measured 122.4 m (402 ft) long with a beam of 11.9 m (39 ft). Her designed speed was 27.0 knots, and she carried a complement of 320. Her main battery was of 120 mm (4.7 in) calibre.
She was in commission for 2,193 days of the Second World War. She was decommissioned in 1948.
She was broken up for scrap.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- Five Parsons steam turbines, ten Yarrow boilers
- Coal normal 150 t
- Maximum 650 t
- Armament
- ten × 120 mm/50 caliber
- six × 3 pdr 47 mm/50 caliber
- two × 457 mm torpedo tubes
- Armour
- Deck: 19 mm
- Conning tower: 76 mm
Sister ships
Sources
- Facts harvested from Brazilian cruiser Rio Grande do Sul on Wikipedia. Figures only — no wording is taken from it.

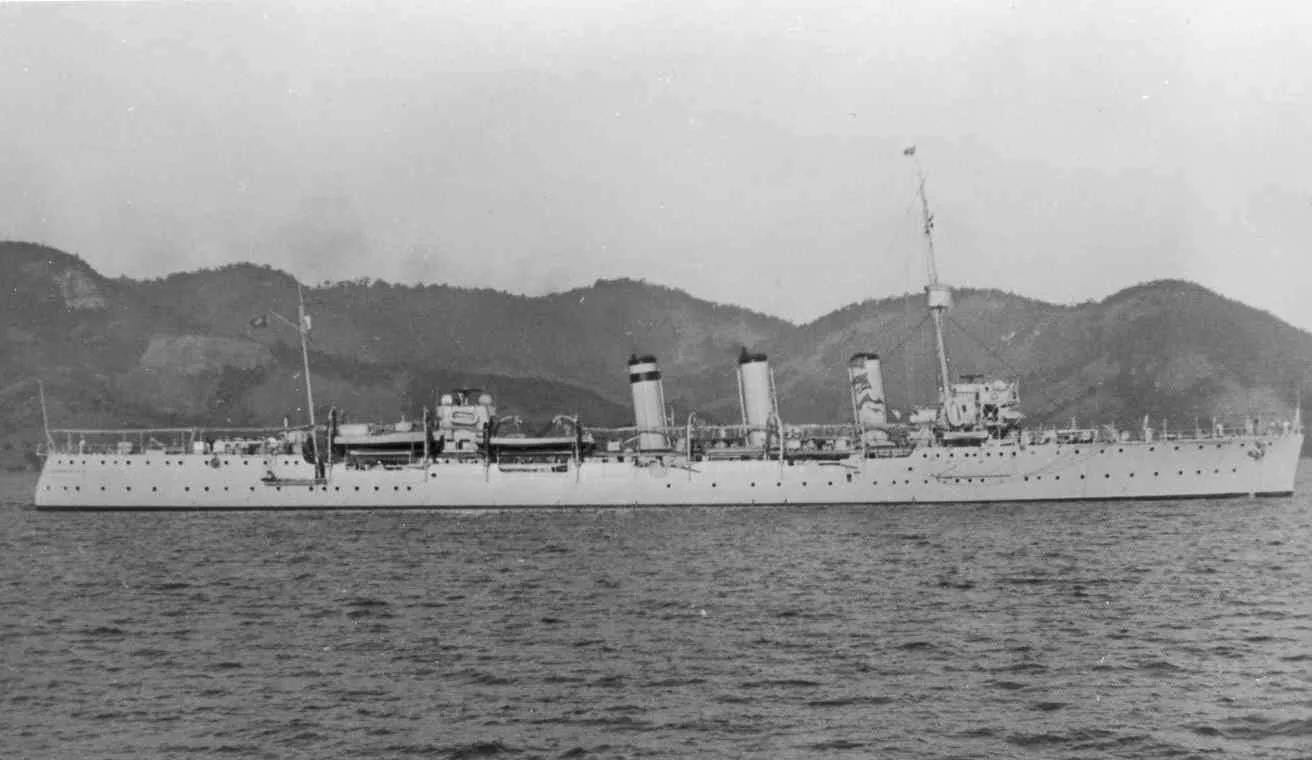

- Photograph: Unknown author — Navios de Guerra Brasileiros — Public domain — Wikimedia Commons
