French battleship Dunkerque

Dunkerque-class battleship

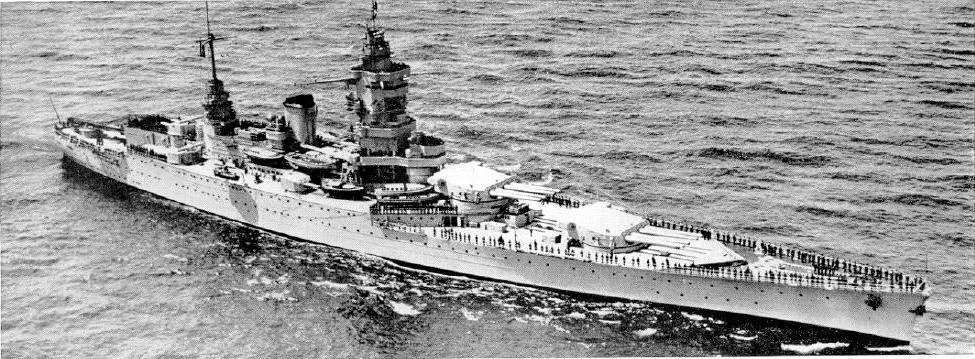

French battleship Dunkerque
Unknown author — Public domain — Wikimedia Commons Plate

Service

  1. Marine Nationale as Dunkerque1 May 1937 — 27 November 19421,183 days of the war
Dunkerque-class battleship Particulars
Name
Dunkerque
Namesake
City of Dunkirk
Builder
Arsenal de Brest
Laid down
24 December 1932
Launched
2 October 1935
Commissioned
1 May 1937
Fate
Scuttled, 27 November 1942; scrapped, 1958 (1942)
Status
Wreck

Specifications

Displacement, standard
26,081 long tons (26,500 t)
Displacement, full load
34,939 long tons (35,500 t)
Length
214.5 m (703.7 ft)
Beam
31.08 m (102 ft)
Draught
8.7 m (28.5 ft)
Speed
29.5 knots (54.6 km/h, 33.9 mph)
Range
7,850 nmi (14,538 km)
Main gun
330 mm (13 in)

Dunkerque was a Dunkerque-class battleship, operated by the Marine Nationale. The ship was named after City of Dunkirk. Her keel was laid at Arsenal de Brest on 24 December 1932. Launched on 2 October 1935, she entered service on 1 May 1937.

Her class ran to two ships. The class followed the Lyon-class battleship and was succeeded by the Richelieu-class battleship.

Displacement was 26,081 long tons standard and 34,939 long tons at full load. She measured 214.5 m (704 ft) long with a beam of 31.1 m (102 ft). Her designed speed was 29.5 knots.

Her main battery was eight 330 mm (13.0 in) guns. Her belt armour was 225 mm (8.9 in) and her deck 115 mm. She carried two aircraft. Her machinery developed 107,500 shp.

She was in commission for 1,183 days of the Second World War.

She was scuttled on 27 November 1942. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 × screw propellers
  • 4 × geared steam turbines
Power
  • 107500 shp (designed)
  • 135585 shp (maximum)
  • 6 × Indret boilers
Armament
  • 8 × 330 mm guns
  • 16 × 130 mm DP guns
  • 8 × single 37 mm AA guns
  • 32 × 13.2 mm AA machineguns
Armour
  • Belt armor: 225 mm
  • Main deck: 115 mm
  • Gun turrets: 330 mm
  • Conning tower: 270 mm
Aircraft
  • 2 floatplanes
