Recognition Guide Warships of the Second World War
Marine Nationale — Cruiser 1923

French cruiser Duguay-Trouin (1923)

Duguay-Trouin-class cruiser

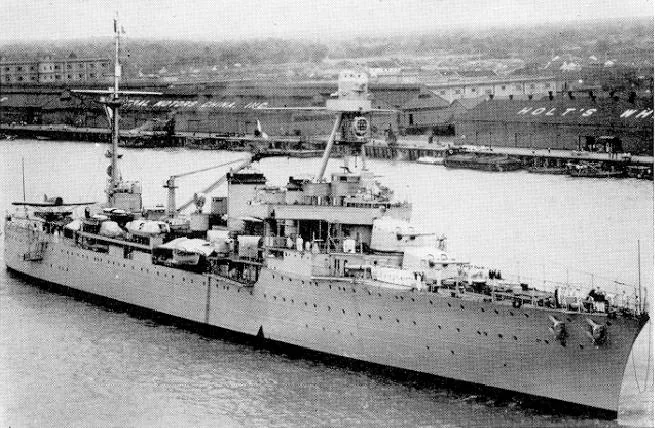

French cruiser Duguay-Trouin (1923)
Unknown author — Public domain — Wikimedia Commons Plate — 1923

Service

  1. Marine Nationale as Duguay-Trouin2 November 1926 — 19 March 19522,193 days of the war
Duguay-Trouin-class cruiser Particulars
Name
Duguay-Trouin
Pennant / hull number
1923
Namesake
René Duguay-Trouin
Builder
Arsenal de Brest
Laid down
4 August 1922
Launched
14 August 1923
Commissioned
2 November 1926
Decommissioned
19 March 1952
Fate
Scrapped
Status
Scrapped

Specifications

Displacement, standard
7,249 long tons (7,365 t)
Displacement, full load
9,350 long tons (9,500 t)
Length
181.3 m (594.8 ft) OA
Beam
17.5 m (57.4 ft)
Draught
6.14 m (20.1 ft)
Speed
33 knots (61.1 km/h, 38 mph)
Range
3,000 nmi (5,556 km)
Complement
578
Main gun
155 mm (6.1 in)

Duguay-Trouin was a Duguay-Trouin-class cruiser built for the Marine Nationale. She carried the pennant number 1923. The ship was named after René Duguay-Trouin. Arsenal de Brest laid her keel on 4 August 1922. She entered service on 2 November 1926, having been launched on 14 August 1923.

Her class ran to three ships. The class followed the La Motte-Picquet-class cruiser and was succeeded by the French cruiser Jeanne d'Arc (1930).

She displaced 7,249 long tons standard and 9,350 long tons at full load. She measured 181.3 m (595 ft) long with a beam of 17.5 m (57 ft). Her designed speed was 33 knots, and she carried a complement of 578.

Her main battery was eight 155 mm (6.1 in) guns in four twin mountings. She carried two aircraft. Her machinery developed 102,000 shp through four shafts.

She was in commission for 2,193 days of the Second World War. She was decommissioned on 19 March 1952.

She was broken up for scrap.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 shafts; 4 geared turbines
Power
  • 8 Guyot boilers
  • 102000 shp
Armament
  • Initial
  • 4 × twin 155 mm guns
  • 4 × single 75 mm AA guns
  • 4 × triple 550 mm torpedo tubes
  • 1944 refit
  • 4 × twin 155 mm guns
  • 4 × single 75 mm AA guns
  • 3 × twin 40 mm AA guns
  • 20 × single 20 mm AA guns
Armour
  • Deck: 20 mm
  • Magazine box: 30 mm
  • Turrets and conning tower: 30 mm
Aircraft
  • 2 × floatplanes

Sister ships
