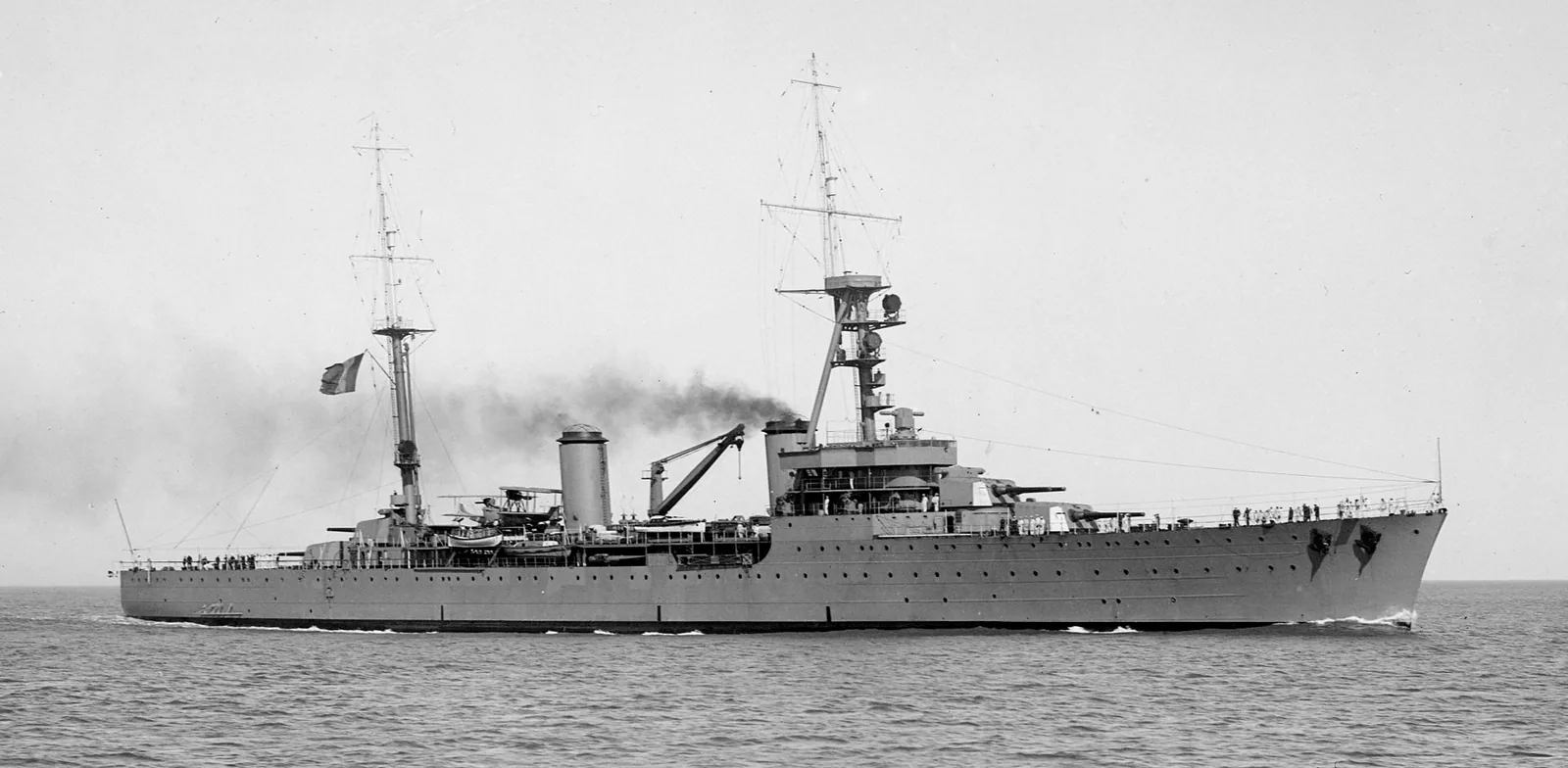

French cruiser Tourville (1926)
Service
- as Tourville5 May 1928 — 8 March 19622,193 days of the war
- Name
- Tourville
- Pennant / hull number
- 1926
- Namesake
- Anne Hilarion de Tourville
- Builder
- Arsenal de Lorient
- Ordered
- 1 July 1924
- Laid down
- 4 March 1925
- Launched
- 24 August 1926
- Commissioned
- 5 May 1928
- Fate
- Towed from Brest to Toulon for scrapping, 15 January 1963 (1963)
- Status
- Unknown
Specifications
- Displacement, standard
- 10,000 long tons (10,160 t)
- Displacement, full load
- 12,239 long tons (12,435 t)
- Length
- 191 m (626.6 ft) OA
- Beam
- 19 m (62.3 ft)
- Draught
- 6.32 m (20.7 ft)
- Speed
- 34 knots (63 km/h, 39.1 mph)
- Range
- 5,000 nmi (9,260 km)
- Complement
- 605
- Main gun
- 203 mm (8 in)
Tourville was a light cruiser of the Duquesne-class cruiser built for the Marine Nationale. She carried the pennant number 1926. She was named for Anne Hilarion de Tourville. Arsenal de Lorient laid her keel on 4 March 1925. She entered service on 5 May 1928, having been launched on 24 August 1926.
Two ships of the class were built. The Suffren-class cruiser followed.
Displacement was 10,000 long tons standard and 12,239 long tons at full load. She measured 191 m (627 ft) long with a beam of 19 m (62 ft). Her designed speed was 34 knots, and she carried a complement of 605.
Her main battery was eight 203 mm (8.0 in) guns. She carried two aircraft.
She was in commission for 2,193 days of the Second World War.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- 8 Guyot du Temple boilers, 20 kg/cm2 (215°)
- 4-shaft Rateau-Bretagne single-reduction geared steam turbines for 118358.4 shp
- Armament
- Initial
- 8 × 203 mm/50 guns (4 × 2)
- 8 × 75 mm/50 AA guns (8 × 1)
- 8 × 37 mm light AA guns (4 × 2)
- 12 × 13.2 mm AA machine guns (12 × 1)
- 12 × 550 mm torpedo tubes (4 × 3)
- 1943 refit
- 8 × 203 mm/50 guns (4 × 2)
- 8 × 75 mm/50 AA guns (8 × 1)
- 8 × 40 mm AA guns (8 × 1)
- 16 × 20 mm light AA guns (16 × 1)
- Armour
- Magazine box 30 mm sides and 20 mm crowns
- Deck 30 mm
- Turrets and conning tower 30 mm
- Aircraft
- 2 FBA 17 and CAMS 37A (superseded by GL-810 then Loire-Nieuport 130
