Recognition Guide Warships of the Second World War
Kriegsmarine — Submarine 1940

German submarine U-100 (1940)

Type VIIB submarine

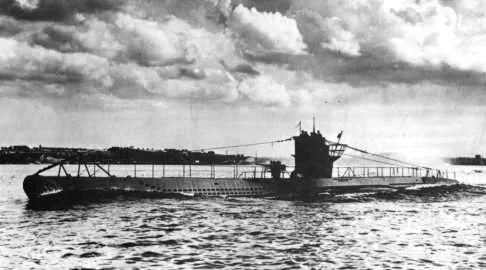

German submarine U-100 (1940)
http://longislandcobra.com/ — FAL — Wikimedia Commons Plate — 1940 U-100 on tests, 1940

Service

  1. Kriegsmarine as U-10030 May 1940 — 17 March 1941293 days of the war
Type VIIB submarine Particulars
Name
U-100
Pennant / hull number
1940
Builder
Germaniawerft, Kiel
Ordered
15 December 1937
Laid down
22 May 1939
Launched
10 April 1940
Commissioned
30 May 1940
Fate
Sunk 17 March 1941 (1941)
Status
Wreck

Specifications

Displacement, surfaced
741 long tons (753 t)
Displacement, submerged
843 long tons (857 t)
Length
66.5 m (218.2 ft) OA
Beam
6.2 m (20.3 ft)
Draught
4.74 m (15.6 ft)
Speed
17.9 knots (33.2 km/h, 20.6 mph)
Range
8,700 nmi (16,112 km)
Main gun
88 mm (3.5 in)

U-100 was a Type VIIB submarine of the Kriegsmarine. She carried the pennant number 1940. Germaniawerft, Kiel laid her keel on 22 May 1939. Launched on 10 April 1940, she entered service on 30 May 1940.

Her class ran to 24 ships. The class followed the Type UB III, Vetehinen class and was succeeded by the Type XXI (Late-war replacement).

The boat displaced 741 long tons surfaced and 843 long tons submerged. She measured 66.5 m (218 ft) long with a beam of 6.2 m (20 ft). Her designed speed was 17.9 knots.

Her main battery was one 88 mm (3.5 in) guns.

She was in commission for 293 days of the Second World War.

She was sunk on 17 March 1941, at 61°04′N 11°30′W. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 2800 - 3200 PS (diesels)
  • 750 PS (electric)
Armament
  • 5 × 53.3 cm torpedo tubes (four bow, one stern)
  • 14 torpedoes or 26 TMA mines
  • 1 × 8.8 cm deck gun with 220 rounds
  • 1 × 2 cm C/30 anti-aircraft gun
