Recognition Guide Warships of the Second World War
Kriegsmarine — Submarine

German submarine U-1198

Type VIIC submarine

German submarine U-1198

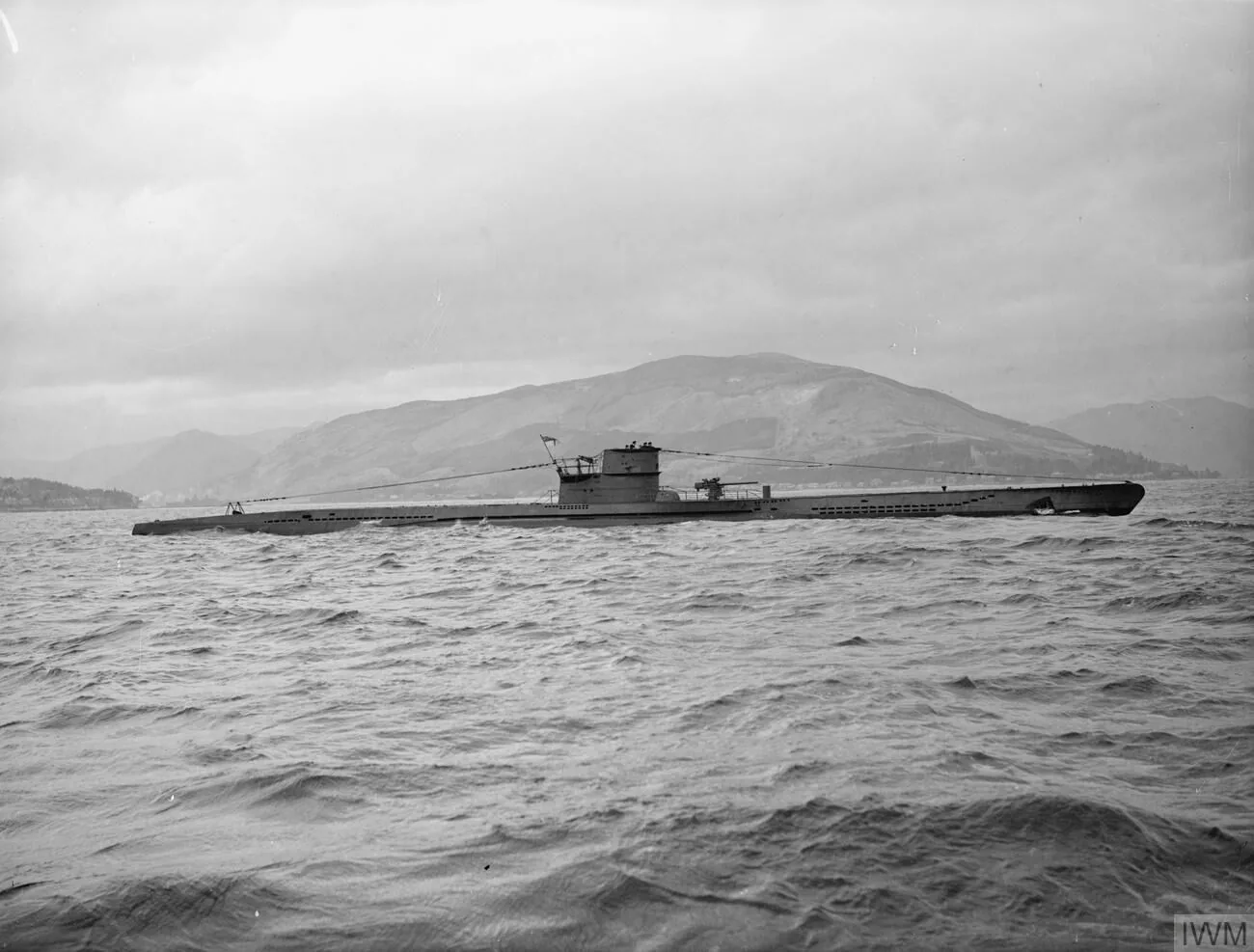

UK Government — This photograph A 16040 comes from the collections of the Imperial War Museums — Public domain — Wikimedia Commons Plate U 570, a Type VIIC submarine.

Service

  1. Kriegsmarine as U-11989 December 1943 — 8 May 1945516 days of the war
Type VIIC submarine Particulars
Name
U-1198
Builder
F Schichau GmbH, Danzig
Ordered
25 August 1941
Laid down
13 March 1943
Launched
30 September 1943
Commissioned
9 December 1943
Fate
Surrendered on 8 May 1945; sunk as part of Operation Deadlight on 17 December 1945 (1945)
Status
Wreck

Specifications

Displacement, surfaced
757 long tons (769 t)
Displacement, submerged
857 long tons (871 t)
Length
67.1 m (220.1 ft) OA
Beam
6.2 m (20.3 ft)
Draught
4.74 m (15.6 ft)
Speed
17.7 knots (32.8 km/h, 20.4 mph)
Range
8,500 nmi (15,742 km)
Main gun
88 mm (3.5 in)

U-1198 was a Type VIIC submarine, operated by the Kriegsmarine. F Schichau GmbH, Danzig laid her keel on 13 March 1943. She entered service on 9 December 1943, having been launched on 30 September 1943.

612 ships of the class were built. The class followed the Type UB III, Vetehinen class and was succeeded by the Type XXI (Late-war replacement).

The boat displaced 757 long tons surfaced and 857 long tons submerged. She measured 67.1 m (220 ft) long with a beam of 6.2 m (20 ft). Her designed speed was 17.7 knots.

Her main battery was one 88 mm (3.5 in) guns.

She was in commission for 516 days of the Second World War.

She was sunk on 8 May 1945, at 56°14′N 10°37′W. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 2800 - 3200 PS (diesels)
  • 750 PS (electric)
Armament
  • 5 × 53.3 cm torpedo tubes (four bow, one stern)
  • 14 × torpedoes or
  • 26 TMA mines
  • 1 × 8.8 cm deck gun (220 rounds)
  • 1 × 3.7 cm Flak M42 AA gun
  • 2 × twin 2 cm C/30 anti-aircraft guns

Sister ships

587 more in the class
