Recognition Guide Warships of the Second World War
Kriegsmarine — Submarine

German submarine U-199

Type IXD2 submarine

German submarine U-199

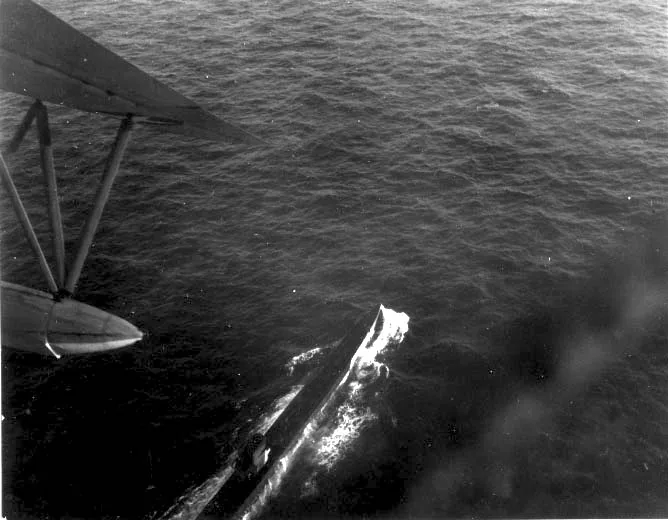

Brazillian Air Force — Diretoria do Patrimônio Histórico e Documentação da Marinha (DPHDM) and Instituto Histórico-Cultural da Aeronáutica (INCAER) — CC BY-SA 4.0 — Wikimedia Commons Plate U-199 under attack by Brazilian Air Force PBY Catalina, notice the "short" conning tower of a early type IX D2.

Service

  1. Kriegsmarine as U-19928 November 1942 — 31 July 1943242 days of the war
Type IXD2 submarine Particulars
Name
U-199
Builder
DeSchiMAG AG Weser, Bremen
Ordered
4 November 1940
Laid down
10 October 1941
Launched
11 July 1942
Commissioned
28 November 1942
Fate
Sunk, 31 July 1943 by the Brazilian aircraft PBY Catalina Arará
By aircraft (1943)
Status
Wreck

Specifications

Displacement, surfaced
1,585 long tons (1,610 t)
Displacement, submerged
1,771 long tons (1,799 t)
Length
87.58 m (287.3 ft) OA
Beam
7.5 m (24.6 ft)
Draught
5.4 m (17.7 ft)
Speed
20.8 knots (38.5 km/h, 23.9 mph)
Range
12,750 nmi (23,613 km)
Complement
55
Main gun
105 mm (4.1 in)

U-199 was a Type IXD2 submarine, operated by the Kriegsmarine. Her keel was laid at DeSchiMAG AG Weser, Bremen on 10 October 1941. Launched on 11 July 1942, she entered service on 28 November 1942.

33 ships of the class were built. The class followed the Type I and was succeeded by the Type XXI.

The boat displaced 1,585 long tons surfaced and 1,771 long tons submerged. She measured 87.6 m (287 ft) long with a beam of 7.5 m (25 ft). Her designed speed was 20.8 knots, and she carried a complement of 55.

Her main battery was one 105 mm (4.1 in) guns.

She was in commission for 242 days of the Second World War.

She was sunk on 31 July 1943 by aircraft, at 23°54′S 42°54′W. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 9000 PS (diesels)
  • 1000 PS (electric)
Armament
  • 6 × torpedo tubes (four bow, two stern)
  • 24 × 53.3 cm torpedoes
  • 1 × 10.5 cm SK C/32 deck gun (150 rounds)
  • 1 × 3.7 cm SK C/30
  • 2 × 2 cm C/30 anti-aircraft guns

Sister ships

8 more in the class
