German submarine U-2366

Type XXIII submarine

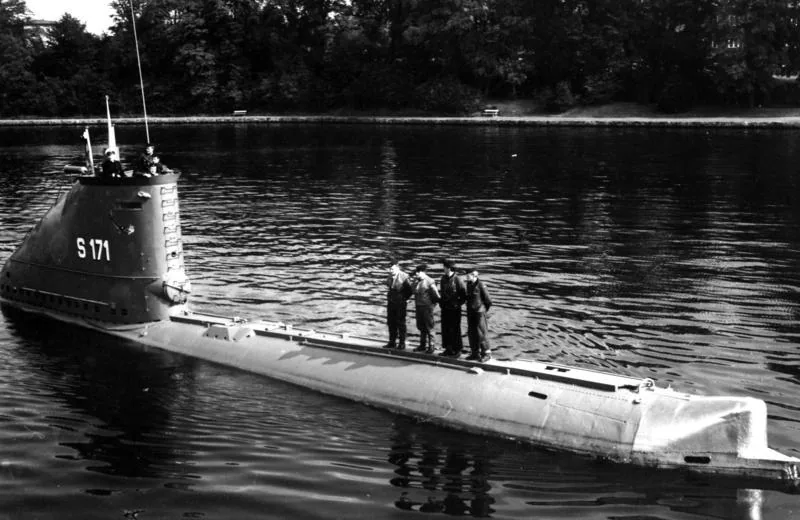

German submarine U-2366
Unknown author — This image was provided to Wikimedia Commons by the German Federal Archive (Deutsches Bundesarchiv) as part of a cooperation project . The German Federal Archive guarantees an authentic representation only using the originals (negative and/or positive), resp. the digitalization of the originals as provided by the Digital Image Archive — CC BY-SA 3.0 de — Wikimedia Commons Plate

Service

  1. Kriegsmarine as U-236610 March 1945 — 5 May 194556 days of the war
Type XXIII submarine Particulars
Name
U-2366
Builder
Deutsche Werft AG, Hamburg
Ordered
20 September 1944
Laid down
6 December 1944
Launched
17 February 1945
Commissioned
10 March 1945
Fate
Scuttled on 5 May 1945 (1945)
Status
Wreck

Specifications

Displacement, surfaced
230 long tons (234 t)
Displacement, submerged
254 long tons (258 t)
Length
34.68 m (113.8 ft) OA
Beam
3.02 m (9.9 ft)
Draught
3.66 m (12 ft)
Speed
9.7 knots (18 km/h, 11.2 mph)
Range
2,600 nmi (4,815 km)
Complement
14

U-2366 was a Type XXIII submarine built for the Kriegsmarine. Her keel was laid at Deutsche Werft AG, Hamburg on 6 December 1944. She entered service on 10 March 1945, having been launched on 17 February 1945.

Her class ran to 62 ships. The class followed the Type II submarine (Conventional coastal submarine) and was succeeded by the Type 201 coastal submarine.

The boat displaced 230 long tons surfaced and 254 long tons submerged. She measured 34.7 m (114 ft) long with a beam of 3.0 m (10 ft). Her designed speed was 9.7 knots, and she carried a complement of 14.

Her main battery was two 533 mm (21.0 in) guns.

She was in commission for 56 days of the Second World War.

She was scuttled on 5 May 1945. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 1 × MWM RS134S 6-cylinder diesel engine
  • 1 × AEG GU4463-8 double-acting electric motor
  • 1 × BBC CCR188 electric creeping motor
Power
  • 575 - 630 PS (diesel drive)
  • 580 PS (standard electric drive)
  • 35 PS (silent electric drive)
Armament
  • 2 × 53.3 cm bow torpedo tubes
  • 2 × torpedoes

Sister ships

37 more in the class
