Recognition Guide Warships of the Second World War
Kriegsmarine — Submarine

German submarine U-335

Type VIIC submarine

German submarine U-335

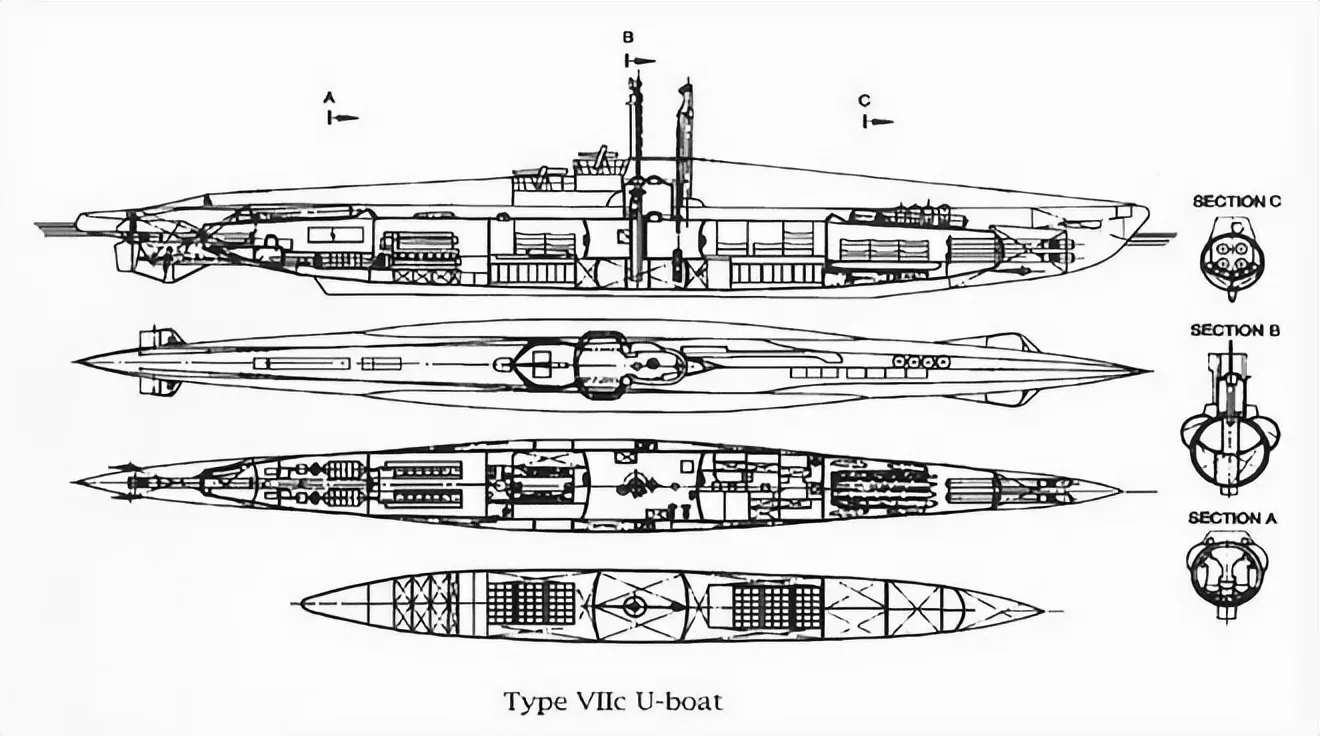

NSA — http://www.ibiblio.org/hyperwar/ETO/Ultra/SRH-009/SRH009-5.html — Public domain — Wikimedia Commons Plate A Type VIIC uboat.

Service

  1. Kriegsmarine as U-33517 December 1941 — 3 August 1942229 days of the war
Type VIIC submarine Particulars
Name
U-335
Builder
Nordseewerke, Emden
Ordered
15 August 1940
Laid down
3 January 1941
Launched
15 October 1941
Commissioned
17 December 1941
Fate
Sunk on 3 August 1942 (1942)
Status
Wreck

Specifications

Displacement, surfaced
757 long tons (769 t)
Displacement, submerged
857 long tons (871 t)
Length
67.1 m (220.1 ft) OA
Beam
6.2 m (20.3 ft)
Draught
4.74 m (15.6 ft)
Speed
17.7 knots (32.8 km/h, 20.4 mph)
Range
8,500 nmi (15,742 km)
Main gun
88 mm (3.5 in)

U-335 was a Type VIIC submarine built for the Kriegsmarine. Nordseewerke, Emden laid her keel on 3 January 1941. She entered service on 17 December 1941, having been launched on 15 October 1941.

She was one of 612 ships of her class. The class followed the Type UB III, Vetehinen class and was succeeded by the Type XXI (Late-war replacement).

The boat displaced 757 long tons surfaced and 857 long tons submerged. She measured 67.1 m (220 ft) long with a beam of 6.2 m (20 ft). Her designed speed was 17.7 knots.

Her main battery was one 88 mm (3.5 in) guns.

She was in commission for 229 days of the Second World War.

She was sunk on 3 August 1942, at 62°48′N 0°12′W. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 2800 - 3200 PS (diesels)
  • 750 PS (electric)
Armament
  • 5 × 53.3 cm torpedo tubes (four bow, one stern)
  • 14 × torpedoes or 26 TMA mines
  • 1 × 8.8 cm deck gun (220 rounds)
  • 1 x 2 cm C/30 AA gun

Sister ships

587 more in the class
