German submarine U-4701

Type XXIII submarine

German submarine U-4701

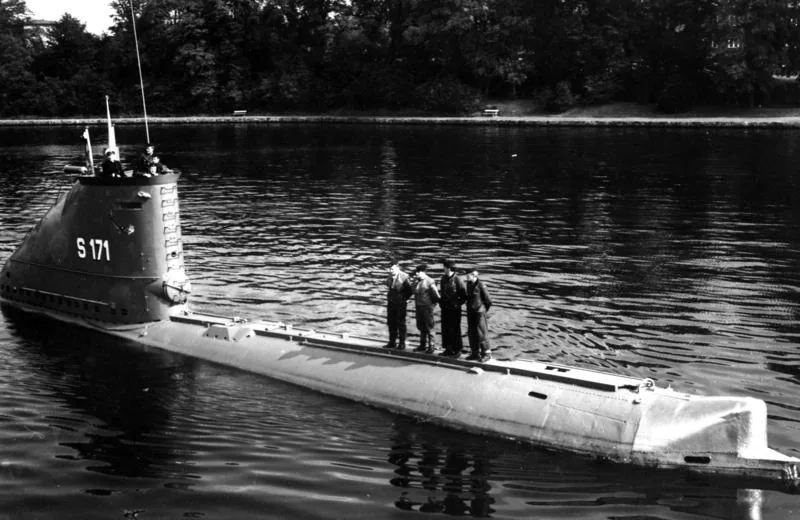

Unknown author — This image was provided to Wikimedia Commons by the German Federal Archive (Deutsches Bundesarchiv) as part of a cooperation project . The German Federal Archive guarantees an authentic representation only using the originals (negative and/or positive), resp. the digitalization of the originals as provided by the Digital Image Archive — CC BY-SA 3.0 de — Wikimedia Commons Plate

Service

  1. Kriegsmarine as U-470110 January 1945 — 5 May 1945115 days of the war
Type XXIII submarine Particulars
Name
U-4701
Builder
Friedrich Krupp Germaniawerft AG, Kiel
Ordered
7 July 1944
Laid down
19 October 1944
Launched
14 December 1944
Commissioned
10 January 1945
Fate
Scuttled on 5 May 1945 (1945)
Status
Wreck

Specifications

Displacement, surfaced
230 long tons (234 t)
Displacement, submerged
254 long tons (258 t)
Length
34.68 m (113.8 ft) OA
Beam
3.02 m (9.9 ft)
Draught
3.66 m (12 ft)
Speed
9.7 knots (18 km/h, 11.2 mph)
Range
2,600 nmi (4,815 km)
Complement
14

U-4701 was a Type XXIII submarine in service with the Kriegsmarine. Friedrich Krupp Germaniawerft AG, Kiel laid her keel on 19 October 1944. She entered service on 10 January 1945, having been launched on 14 December 1944.

62 ships of the class were built. The class followed the Type II submarine (Conventional coastal submarine) and was succeeded by the Type 201 coastal submarine.

The boat displaced 230 long tons surfaced and 254 long tons submerged. She measured 34.7 m (114 ft) long with a beam of 3.0 m (10 ft). Her designed speed was 9.7 knots, and she carried a complement of 14.

Her main battery was two 533 mm (21.0 in) guns.

She was in commission for 115 days of the Second World War.

She was scuttled on 5 May 1945. The wreck survives.
