HMAS Quadrant
Service
- 26 November 1942 — 19451,011 days of the war
- 18 October 1945 — 16 August 1957
- Name
- HMAS Quadrant
- Namesake
- The navigational instrument
- Builder
- R. and W. Hawthorn, Leslie and Company Limited
- Laid down
- 24 September 1940
- Launched
- 28 February 1942
- Commissioned
- 26 November 1942
- Decommissioned
- 1945
- Recommissioned
- 16 July 1953
- Fate
- Sold for scrap
- Status
- Scrapped
Specifications — As launched
- Displacement, standard
- 1,750 long tons (1,778 t)
- Displacement, full load
- 2,388 long tons (2,426 t)
- Length
- 109.12 m (358 ft) OA
- Beam
- 10.67 m (35 ft)
- Speed
- 31.5 knots (58.3 km/h, 36.2 mph)
- Complement
- 220
- Main gun
- 20 mm (0.8 in)
HMAS Quadrant was a Q-class destroyer built for the Royal Navy. She was named for The navigational instrument. Her keel was laid at R. and W. Hawthorn, Leslie and Company Limited on 24 September 1940. Launched on 28 February 1942, she entered service on 26 November 1942.
She was one of seven ships of her class. The class followed the O and P-class destroyer and was succeeded by the S and T-class destroyer.
Displacement was 1,750 long tons standard and 2,388 long tons at full load. She measured 109.1 m (358 ft) long with a beam of 10.7 m (35 ft). Her designed speed was 31.5 knots, and she carried a complement of 220.
Her main battery was six 20 mm (0.8 in) guns.
She served with the Royal Navy until 1945. She then passed to the Royal Australian Navy from 18 October 1945. She was in commission for 1,011 days of the Second World War. She was decommissioned in 1945. She recommissioned on 16 July 1953.
She was broken up for scrap.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
This vessel is recorded in 2 configurations. Wartime refits changed armament and complement substantially, so each is kept separately rather than averaged into one set of figures. The figures above are as built.
As launched
- Propulsion
- 2 × Admiralty 3-drum boilers, Parsons geared turbines, 40,000 SHP, two propellers
- Armament
- 4 × single 4.7-inch QF Mark XI** guns
- 1 × quadruple 2-pounder "pom-pom"
- 6 × single 20 mm Oerlikon guns
- 2 × quadruple torpedo tube sets for 21 inch (533 mm) torpedoes
- 4 × Depth charge throwers, up to 70 depth charges
Post conversion
- Draught
- 4.72 m (15.5 ft)
- Range
- 4,040 nmi (7,482 km)
- Main gun
- 40 mm (1.6 in)
- Armament
- 2 × 4-inch guns
- 2 × 40 mm Bofors cannons
- 2 × Squid anti-submarine mortars
Sister ships
Sources
- Facts harvested from HMAS Quadrant on Wikipedia. Figures only — no wording is taken from it.

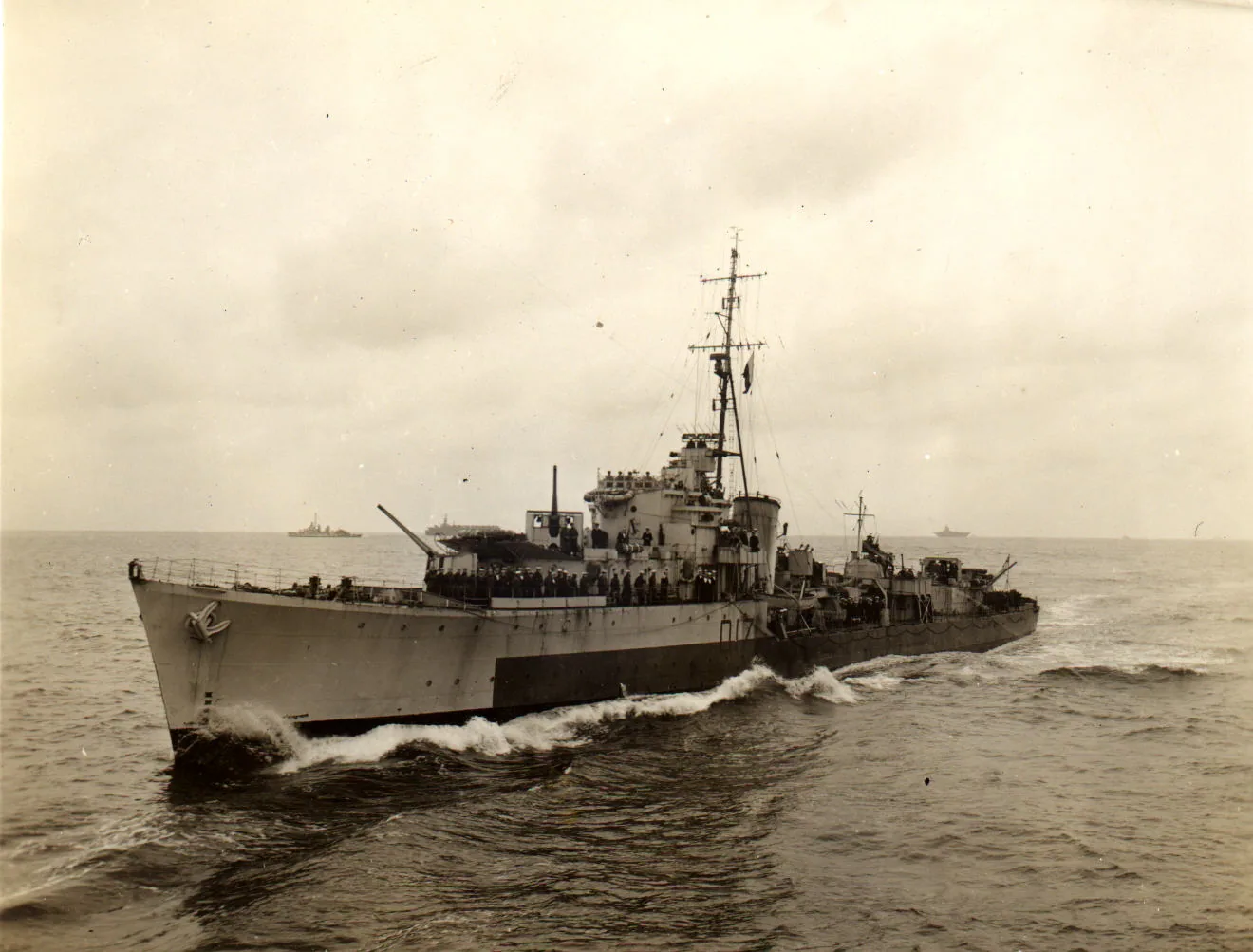

- Photograph: U.S. Navy (This image is part of a photograph album that was acquired by RADM Joseph C. Clifton during his service as Executive Officer of USS Wasp (CV-18) during World War II) — U.S. Navy National Museum of Naval Aviation photo No. [1] — Public domain — Wikimedia Commons
