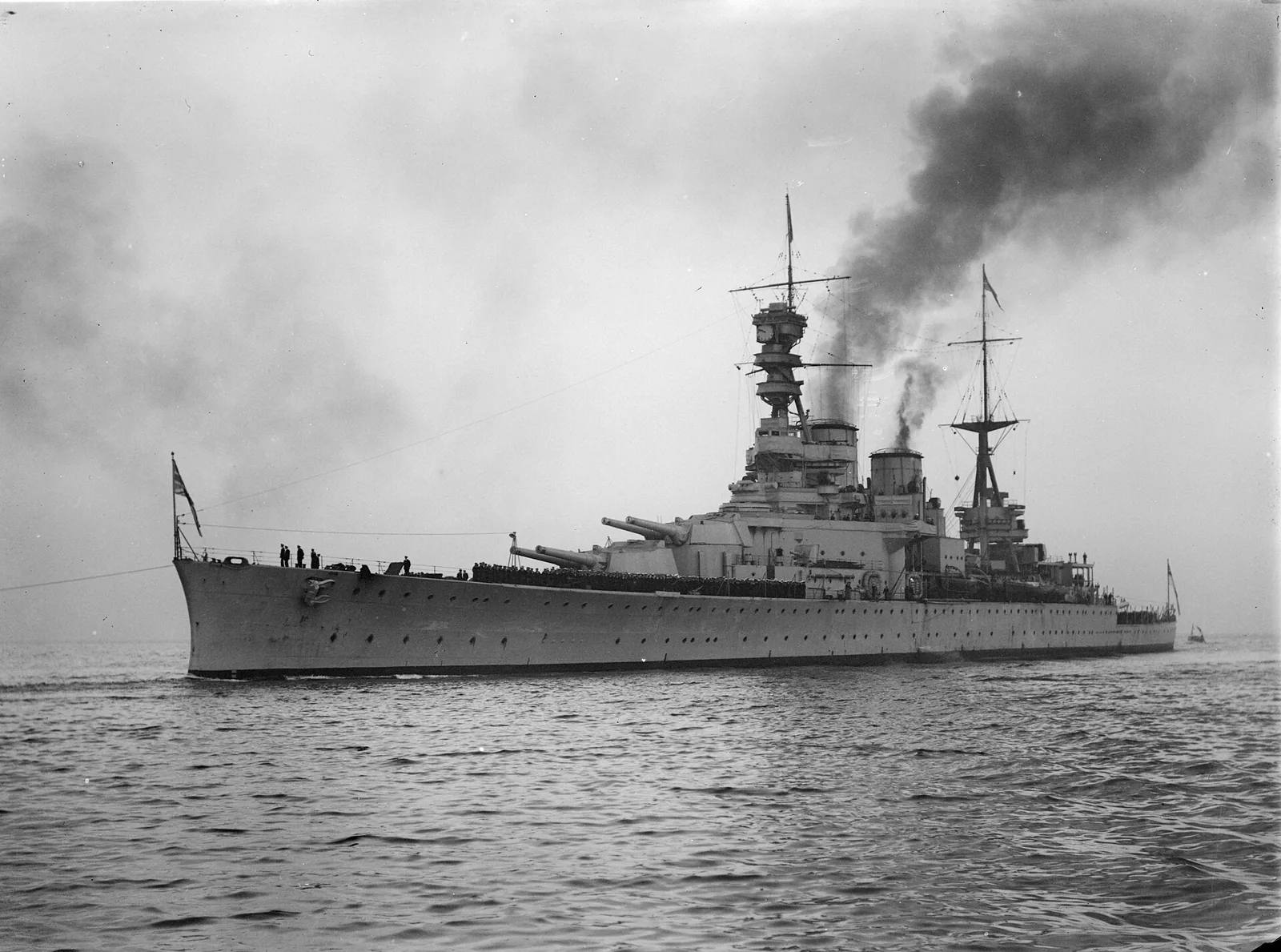

HMS Renown (1916)
Service
- as Renown20 September 1916 — 19482,193 days of the war
- Name
- HMS Renown
- Pennant / hull number
- 1916
- Builder
- Fairfield, Govan, Glasgow, Scotland
- Ordered
- 30 December 1914
- Laid down
- 25 January 1915
- Launched
- 4 March 1916
- Commissioned
- 20 September 1916
- Struck
- 1948
- Fate
- Sold for scrap, 19 March 1948 (1948)
- Status
- Scrapped
Specifications — As built
- Displacement, standard
- 27,200 long tons (27,636 t)
- Displacement, full load
- 32,220 long tons (32,737 t)
- Length
- 228.6 m (750 ft)
- Beam
- 27.43 m (90 ft)
- Draught
- 8.23 m (27 ft)
- Speed
- 32 knots (59.3 km/h, 36.8 mph)
- Range
- 4,000 nmi (7,408 km)
- Main gun
- 381 mm (15 in)
HMS Renown was a Renown-class battlecruiser built for the Royal Navy. She carried the pennant number 1916. Her keel was laid at Fairfield, Govan, Glasgow, Scotland on 25 January 1915. Launched on 4 March 1916, she entered service on 20 September 1916.
Two ships of the class were built. The class followed the HMS Tiger (1913) and was succeeded by the Courageous-class battlecruiser.
She displaced 27,200 long tons standard and 32,220 long tons at full load. She measured 228.6 m (750 ft) long with a beam of 27.4 m (90 ft). Her designed speed was 32 knots, and she carried a complement of 1,200.
Her main battery was six 381 mm (15 in) guns in three twin mountings. Her machinery developed 112,000 shp.
She was in commission for 2,193 days of the Second World War. She was struck from the register in 1948.
She was broken up for scrap on 19 March 1948.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
This vessel is recorded in 2 configurations. Wartime refits changed armament and complement substantially, so each is kept separately rather than averaged into one set of figures. The figures above are as built.
As built
- Propulsion
- 4 × shafts, 2 × geared steam turbine sets
- Power
- 42 × water-tube boilers
- 112000 shp
- Armament
- 3 × twin 15 in (381 mm) guns
- 5 × triple, 2 × single 4 in (102 mm) guns
- 2 × single 3 in (76 mm) AA guns
- 2 × 21 inch torpedo tubes
- Armour
- Belt: 3 - 6 in
- Decks: 1 - 2.5 in
- Barbettes: 4 - 7 in
- Gun turrets: 7 - 9 in
- Conning tower: 10 in
- Bulkheads: 3 - 4 in
1939
- Displacement, full load
- 36,080 long tons (36,659 t)
- Length
- 242.01 m (794 ft)
- Beam
- 27.43 m (90 ft)
- Draught
- 9.45 m (31 ft)
- Speed
- 31 knots (57.4 km/h, 35.7 mph)
- Range
- 5,718 nmi (10,590 km)
- Complement
- 1,200
- Main gun
- 381 mm (15 in)
- Propulsion
- 4 × shafts; 4 × geared steam turbines
- Power
- 8 × boilers
- 120000 shp
- Armament
- 3 × twin 15 in (381 mm) guns
- 10 × twin 4.5 in (114 mm) DP guns
- 3 × octuple 2-pdr (40 mm) AA guns
- Armour
- Belt: 3 - 9 in
- Decks: 1 - 5 in
- Barbettes: 4 - 7 in
- Gun turrets: 7 - 9 in
- Conning tower: 10 in
- Bulkheads: 3 - 4 in
- Aircraft
- 4 × floatplanes
