Recognition Guide Warships of the Second World War
United States Navy — Aircraft carrier CV-41

USS Midway (CV-41)

Midway-class aircraft carrier

USS Midway (CV-41)

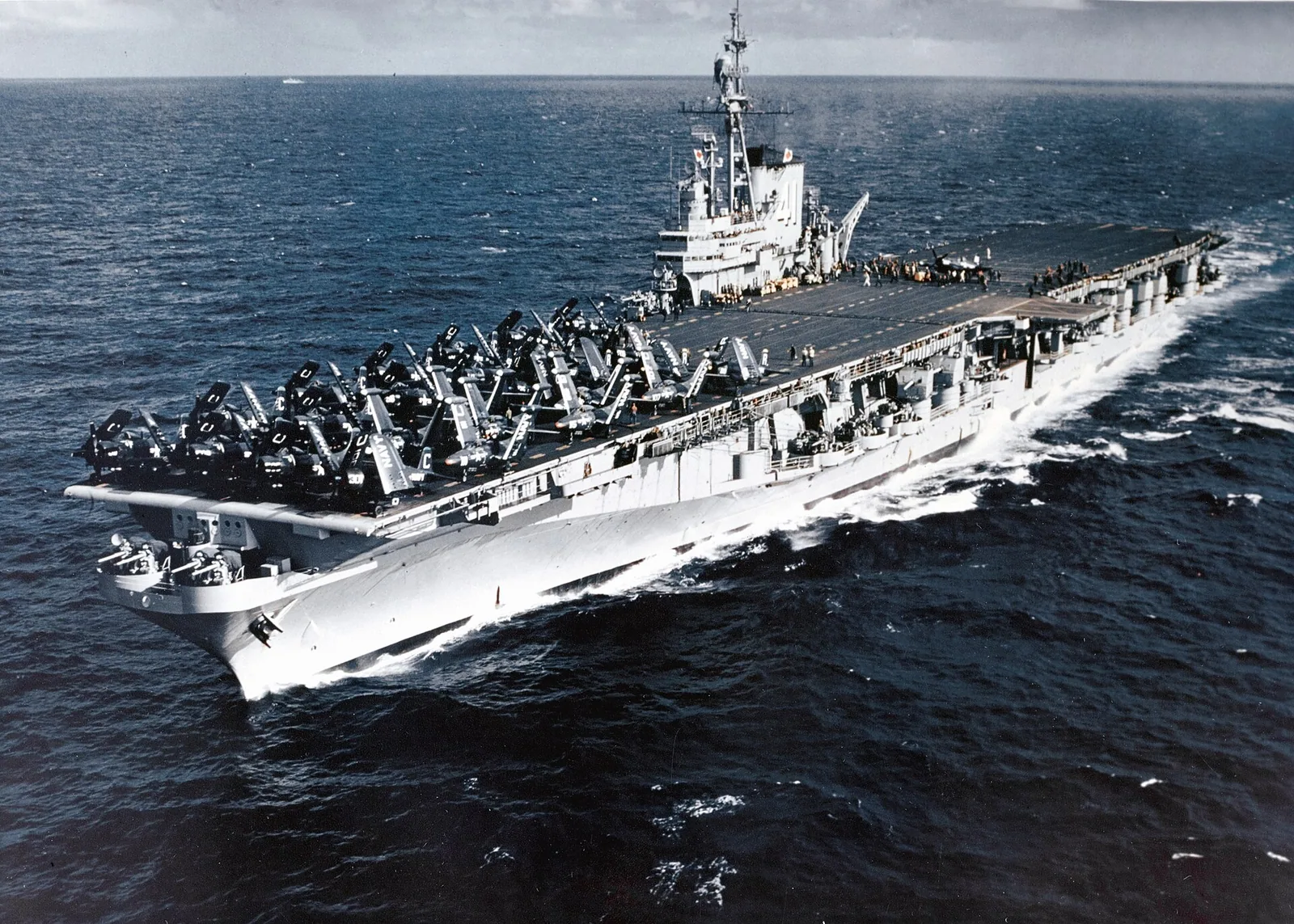

Unknown author — U.S. Navy photo 80-G-K-13223 — Public domain — Wikimedia Commons Plate — CV-41 The U.S. Navy aircraft carrier USS Midway (CVB-41) steaming off the Firth of Clyde, Scotland (UK), prior to "Operation Mainbrace" exercises, September 1952. Douglas AD-4 Skyraider , Vought F4U-4 Corsair , and Grumman F9F-2 Panther aircraft from Carrier Air Group 6 (CVG-6) are spotted on her flight deck.

Service

  1. United States Navy as Midway10 September 1945 — 11 April 1992
Midway-class aircraft carrier Particulars
Name
USS Midway
Pennant / hull number
CV-41
Namesake
Battle of Midway
Builder
Newport News Shipbuilding
Ordered
1 August 1942
Laid down
27 October 1943
Launched
20 March 1945
Commissioned
10 September 1945
Decommissioned
11 April 1992
Struck
17 March 1997
Fate
Museum ship at the USS Midway Museum in San Diego, California
Status
Preserved

Specifications

Displacement, standard
45,000 long tons (45,722 t)
Length
305.1 m (1,001 ft)
Beam
36.88 m (121 ft)
Draught
10.52 m (34.5 ft)
Speed
33 knots (61.1 km/h, 38 mph)
Complement
4,104
Main gun
127 mm (5 in)

USS Midway was a Midway-class aircraft carrier built for the United States Navy. She carried the pennant number CV-41. She was named for Battle of Midway. Newport News Shipbuilding laid her keel on 27 October 1943. Launched on 20 March 1945, she entered service on 10 September 1945.

Three ships of the class were built. The class followed the Essex-class aircraft carrier and was succeeded by the United States-class aircraft carrier.

She displaced 45,000 long tons. She measured 305.1 m (1,001 ft) long with a beam of 36.9 m (121 ft). Her designed speed was 33 knots, and she carried a complement of 4,104.

Her main battery was 18 127 mm (5 in) guns. She carried 137 aircraft.

She was decommissioned on 11 April 1992. She was struck from the register on 17 March 1997.

She has been preserved.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 12 boilers, four Westinghouse geared Steam turbines
Armament
  • As Built:
  • 18 × 5 in/54 caliber guns
  • 21 × quad 40 mm Bofors gun
  • 28 × twin 20 mm Oerlikon cannon
  • After Refit:
  • 2 8-cell Sea Sparrow launchers
  • 2 Phalanx CIWS
Armour
  • Portside Belt: 7.6 inch
  • Starboard Belt: 7 inch
  • Lower Edge and Upper Belt: 1.96 inch
  • Flight Deck: 3.5 inch
  • Hangar Deck: 2 inch
  • 3rd Deck: 2 inch
Aircraft
  • 137 theoretical, 100 (1940s–50s), 70 (Vietnam–retirement)

Sister ships

Sources

  • Facts harvested from USS Midway (CV-41) on Wikipedia. Figures only — no wording is taken from it.
  • Photograph: Unknown author — U.S. Navy photo 80-G-K-13223 — Public domain — Wikimedia Commons
