German submarine U-1405
Service
- as U-140521 December 1944 — 5 May 1945135 days of the war
- Name
- U-1405
- Builder
- Blohm & Voss, Hamburg
- Ordered
- 4 January 1943
- Laid down
- 15 October 1943
- Launched
- 1 December 1944
- Commissioned
- 21 December 1944
- Fate
- Scuttled on 5 May 1945, later broken up (1945)
- Status
- Wreck
Specifications
- Displacement, standard
- 408 long tons (415 t)
- Displacement, surfaced
- 307 long tons (312 t)
- Displacement, submerged
- 332 long tons (337 t)
- Length
- 41.45 m (136 ft) OA
- Beam
- 4.5 m (14.8 ft)
- Draught
- 4.3 m (14.1 ft)
- Speed
- 8.8 knots (16.3 km/h, 10.1 mph)
- Range
- 3,000 nmi (5,556 km)
- Complement
- 19
U-1405 was a Type XVIIB submarine built for the Kriegsmarine. Her keel was laid at Blohm & Voss, Hamburg on 15 October 1943. She entered service on 21 December 1944, having been launched on 1 December 1944.
Eight ships of the class were built. The class followed the Type II (Conventional coastal submarine) and was succeeded by the Type XXIII (conventional coastal submarine).
The boat displaced 307 long tons surfaced and 332 long tons submerged. She measured 41.5 m (136 ft) long with a beam of 4.5 m (15 ft). Her designed speed was 8.8 knots, and she carried a complement of 19.
Her main battery was two 533 mm (21.0 in) guns.
She was in commission for 135 days of the Second World War.
She was scuttled on 5 May 1945. The wreck survives.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- 1 × Deutz SAA 8M517 supercharged 8-cylinder diesel engine (surface diesel drive)
- 1 × AEG Maschine AWT98 electric motor (submerged electric drive)
- 1 × Walter gas turbines HTP (submerged HTP drive)
- 1 shaft
- Power
- 210 PS (surface diesel drive)
- 77 PS (submerged electric drive)
- 2500 PS (submerged HTP drive)
- Armament
- 2 × 53.3 cm torpedo tubes (bow)
- 4 × torpedoes
Sister ships
Sources
- Facts harvested from German submarine U-1405 on Wikipedia. Figures only — no wording is taken from it.

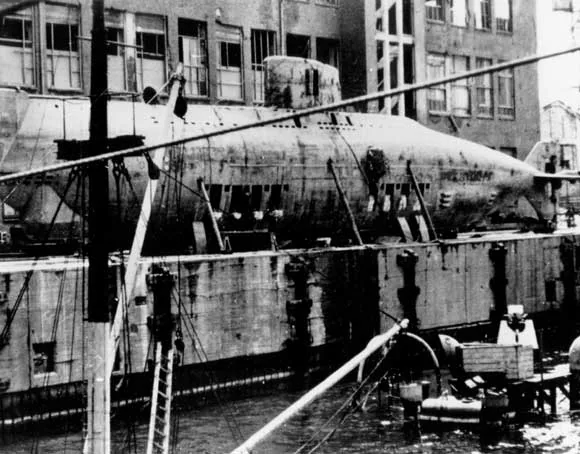

- Photograph: US goverment employee — uploaded from en:Image:Type-XVIIB-sub.jpg , original source was at http://www.chinfo.navy.mil/navpalib/cno/n87/usw/issue_13/propulsion.htm — Public domain — Wikimedia Commons
