German submarine U-510

Type IXC submarine

German submarine U-510

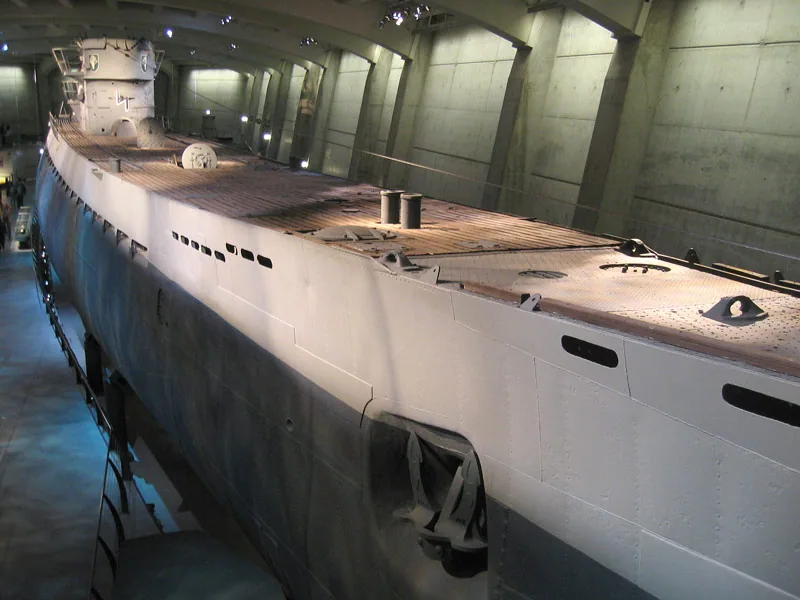

Jeremy Atherton — Self-photographed — CC BY-SA 2.5 — Wikimedia Commons Plate U-505 at the Museum of Science and Industry, Chicago, IL. October 2005.

Service

  1. Kriegsmarine as U-51025 November 1941 — 19461,377 days of the war
  2. Marine Nationale as Bouan24 June 1947 — 1 May 1959
Type IXC submarine Particulars
Name
U-510
Builder
Deutsche Werft, Hamburg
Ordered
20 October 1939
Laid down
1 November 1940
Launched
4 September 1941
Commissioned
25 November 1941
Struck
1 May 1959
Fate
Broken up in 1960 (1960)
Status
Scrapped

Specifications

Displacement, surfaced
1,102 long tons (1,120 t)
Displacement, submerged
1,213 long tons (1,232 t)
Length
76.76 m (251.8 ft) OA
Beam
6.76 m (22.2 ft)
Draught
4.7 m (15.4 ft)
Speed
18.3 knots (33.9 km/h, 21.1 mph)
Range
13,450 nmi (24,909 km)
Complement
48
Main gun
105 mm (4.1 in)

U-510 was a Type IXC submarine, operated by the Kriegsmarine. Deutsche Werft, Hamburg laid her keel on 1 November 1940. Launched on 4 September 1941, she entered service on 25 November 1941.

She was one of 142 ships of her class. The class followed the Type I and was succeeded by the Type XXI.

The boat displaced 1,102 long tons surfaced and 1,213 long tons submerged. She measured 76.8 m (252 ft) long with a beam of 6.8 m (22 ft). Her designed speed was 18.3 knots, and she carried a complement of 48.

Her main battery was one 105 mm (4.1 in) guns.

She served with the Kriegsmarine as U-510 until 1946. She then passed to the Marine Nationale, serving as Bouan from 24 June 1947. She was in commission for 1,377 days of the Second World War. She was struck from the register on 1 May 1959.

She was broken up for scrap in 1960.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 4400 PS (diesels)
  • 1000 PS (electric)
Armament
  • 6 × torpedo tubes (4 bow, 2 stern)
  • 22 × 53.3 cm torpedoes
  • 1 × 10.5 cm SK C/32 deck gun (180 rounds)
  • 1 × 3.7 cm SK C/30 AA gun
  • 1 × twin 2 cm FlaK 30 AA guns

Sister ships

117 more in the class
