German submarine U-67 (1940)

Type IXC submarine

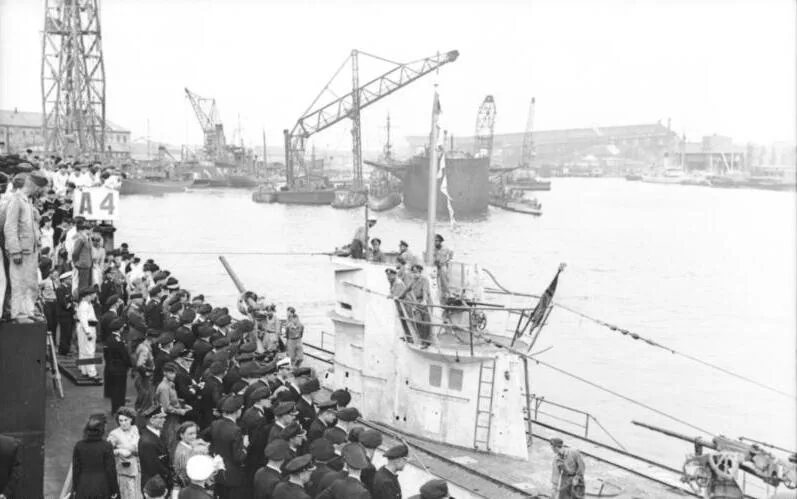

German submarine U-67 (1940)
Dietrich — This image was provided to Wikimedia Commons by the German Federal Archive (Deutsches Bundesarchiv) as part of a cooperation project . The German Federal Archive guarantees an authentic representation only using the originals (negative and/or positive), resp. the digitalization of the originals as provided by the Digital Image Archive — CC BY-SA 3.0 de — Wikimedia Commons Plate — 1940

Service

  1. Kriegsmarine as U-6722 January 1941 — 16 July 1943905 days of the war
Type IXC submarine Particulars
Name
U-67
Pennant / hull number
1940
Builder
DeSchiMAG AG Weser, Bremen
Ordered
7 August 1939
Laid down
5 April 1940
Launched
30 October 1940
Commissioned
22 January 1941
Fate
Sunk 16 July 1943 in the Sargasso Sea (1943)
Status
Wreck

Specifications

Displacement, surfaced
1,102 long tons (1,120 t)
Displacement, submerged
1,213 long tons (1,232 t)
Length
76.76 m (251.8 ft) OA
Beam
6.76 m (22.2 ft)
Draught
4.7 m (15.4 ft)
Speed
18.3 knots (33.9 km/h, 21.1 mph)
Range
13,450 nmi (24,909 km)
Complement
48
Main gun
105 mm (4.1 in)

U-67 was a Type IXC submarine built for the Kriegsmarine. She carried the pennant number 1940. Her keel was laid at DeSchiMAG AG Weser, Bremen on 5 April 1940. Launched on 30 October 1940, she entered service on 22 January 1941.

Her class ran to 142 ships. The class followed the Type I and was succeeded by the Type XXI.

The boat displaced 1,102 long tons surfaced and 1,213 long tons submerged. She measured 76.8 m (252 ft) long with a beam of 6.8 m (22 ft). Her designed speed was 18.3 knots, and she carried a complement of 48.

Her main battery was one 105 mm (4.1 in) guns.

She was in commission for 905 days of the Second World War.

She was sunk on 16 July 1943, at 30°05′N 44°17′W. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 4400 PS (diesels)
  • 1000 PS (electric)
Armament
  • 6 × torpedo tubes (4 bow, 2 stern)
  • 22 × 53.3 cm torpedoes
  • 1 × 10.5 cm SK C/32 deck gun (180 rounds)
  • 1 × 3.7 cm SK C/30 AA gun
  • 1 × twin 2 cm FlaK 30 AA guns

Sister ships

117 more in the class
