Recognition Guide Warships of the Second World War
Imperial Japanese Navy — Cruiser

Japanese cruiser Iwate

Izumo-class cruiser armored cruiser

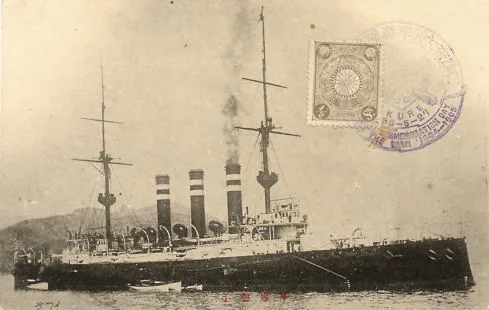

Japanese cruiser Iwate
Unknown author — Public domain — Wikimedia Commons Plate

Service

  1. Imperial Japanese Navy as Iwate? — 30 November 19452,193 days of the war
Izumo-class cruiser armored cruiser Particulars
Name
Iwate
Namesake
Mount Iwate
Builder
Armstrong Whitworth, United Kingdom
Ordered
19 July 1898
Laid down
11 November 1898
Launched
29 March 1900
Struck
30 November 1945
Fate
Sunk by air attack, 25 July 1945
Raised and scrapped, 1946–1947 (1945)
Status
Scrapped

Specifications

Displacement, standard
9,274 long tons (9,423 t)
Length
132.28 m (434 ft) OA
Beam
20.94 m (68.7 ft)
Draught
7.21 m (23.7 ft)
Speed
20.8 knots (38.4 km/h, 23.9 mph)
Range
7,000 nmi (12,964 km)
Complement
672
Main gun
203 mm (8 in)

Iwate was a Izumo-class cruiser armored cruiser, operated by the Imperial Japanese Navy. The ship was named after Mount Iwate. Armstrong Whitworth, United Kingdom laid her keel on 11 November 1898. She was launched on 29 March 1900.

Two ships of the class were built. The class followed the Asama-class cruiser and was succeeded by the Japanese cruiser Yakumo.

Displacement was 9,274 long tons. She measured 132.3 m (434 ft) long with a beam of 20.9 m (69 ft). Her designed speed was 20.8 knots, and she carried a complement of 672.

Her main battery was four 203 mm (8 in) guns in two twin mountings. Her machinery developed 14,500 ihp through two shafts.

She was in commission for 2,193 days of the Second World War. She was struck from the register on 30 November 1945.

She was broken up for scrap on 25 July 1945.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 Shafts; 2 triple-expansion steam engines
Power
  • 24 Belleville boilers
  • 14500 ihp
Armament
  • 2 × twin 8 in guns
  • 14 × single QF 6 in guns
  • 12 × single 12 pdr 3 in guns
  • 8 × single QF 2.5 pdr (1.5 in) Yamauchi guns
  • 4 × 18 in torpedo tubes
Armour
  • Waterline belt: 89 - 178 mm
  • Deck: 63 mm
  • Gun turret: 160 mm
  • Barbette: 152 mm
  • Casemate: 51 - 152 mm
  • Conning tower: 356 mm
  • Bulkhead: 127 mm
