SMS Schlesien
Service
- as Schlesien5 May 1908 — 1 December 1918
- Name
- SMS Schlesien
- Namesake
- Silesia
- Builder
- Schichau, Danzig
- Ordered
- 11 June 1904
- Laid down
- 19 November 1904
- Launched
- 28 May 1906
- Commissioned
- 5 May 1908
- Decommissioned
- 1 December 1918
- Fate
- Mined off Swinemünde in 3 May 1945, scrapped 1949–1956 (1945)
- Status
- Scrapped
Specifications
- Displacement, standard
- 12,983 long tons (13,191 t)
- Displacement, full load
- 13,993 long tons (14,218 t)
- Length
- 127.6 m (418.6 ft)
- Beam
- 22.2 m (72.8 ft)
- Draught
- 7.7 m (25.3 ft)
- Speed
- 18.5 knots (34.3 km/h, 21.3 mph)
- Range
- 4,770 nmi (8,834 km)
- Complement
- 743
- Main gun
- 280 mm (11 in)
SMS Schlesien was a Deutschland-class battleship of the Kriegsmarine. The ship was named after Silesia. Schichau, Danzig laid her keel on 19 November 1904. She entered service on 5 May 1908, having been launched on 28 May 1906.
Five ships of the class were built. The class followed the Braunschweig-class battleship and was succeeded by the Nassau-class battleship.
She displaced 12,983 long tons standard and 13,993 long tons at full load. She measured 127.6 m (419 ft) long with a beam of 22.2 m (73 ft). Her designed speed was 18.5 knots, and she carried a complement of 743.
Her main battery was four 280 mm (11.0 in) guns. Her machinery developed 13,918 kW.
She was decommissioned on 1 December 1918.
She was broken up for scrap on 3 May 1945.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- 3 × triple-expansion steam engines
- 3 × screw propellers
- Power
- 13918 kW
- 12 × water-tube boilers
- Armament
- Original:
- 4 × 28 cm SK L/40 guns
- 14 × 17 cm SK L/40 guns
- 20 × 8.8 cm SK L/45 naval guns
- 6 × 45 cm torpedo tubes
- Armament in 1939:
- 4 × 28 cm SK L/40 guns
- 2 x 8.8 cm SK L/45 guns
- 4 × 3.7 cm SK C/30 guns
- 22 × 2 cm C/30 guns
- Armour
- 240 mm in belt
- 280 mm in turrets
- 40 mm in deck
Sister ships
Sources
- Facts harvested from SMS Schlesien on Wikipedia. Figures only — no wording is taken from it.

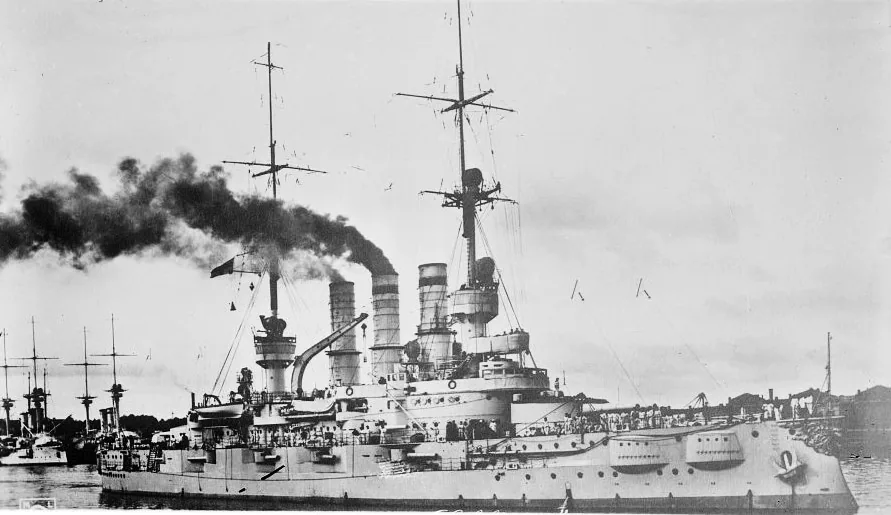

- Photograph: Bain News Service, New York — This image is available from the United States Library of Congress 's Prints and Photographs division under the digital ID ggbain.17791 — Public domain — Wikimedia Commons
