Recognition Guide Warships of the Second World War
United States Navy — Destroyer escort

USS Schmitt

Buckley-class destroyer escort

USS Schmitt

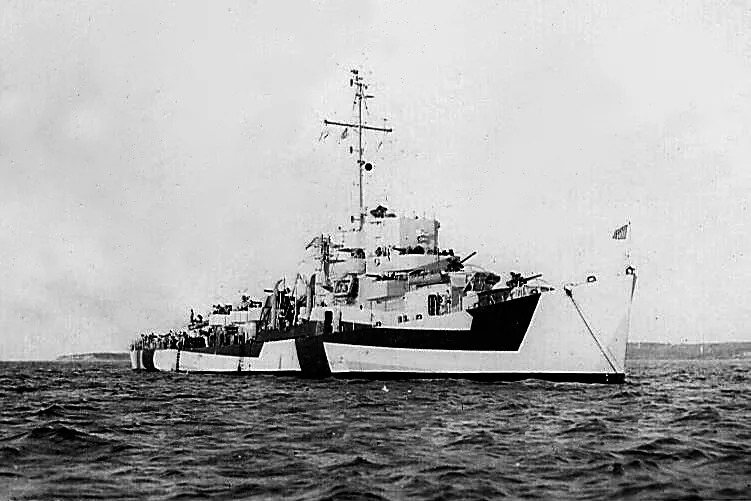

U.S. Navy — U.S. Navy photo [1] from Navsource.org — Public domain — Wikimedia Commons Plate The U.S. Navy destroyer escort USS Schmitt (DE-676) at anchor, in 1944.

Service

  1. United States Navy as USS Schmitt (DE-676)24 July 1943 — 28 June 1949771 days of the war
  2. as ROCS Lung Shan (DE-44)February 1968 — 1976
Buckley-class destroyer escort Particulars
Name
USS Schmitt
Namesake
Aloysius Schmitt
Builder
Bethlehem Shipbuilding Corporation's Fore River Shipyard, Quincy, Massachusetts
Ordered
1942
Laid down
22 February 1943
Launched
29 May 1943
Commissioned
24 July 1943
Decommissioned
28 June 1949
Struck
1 May 1967
Fate
Scrapped, 1976 (1976)
Status
Scrapped

Specifications

Displacement, standard
1,673 long tons (1,700 t)
Length
93.27 m (306 ft)
Beam
11.28 m (37 ft)
Draught
3.96 m (13 ft)
Speed
24 knots (44.4 km/h, 27.6 mph)
Complement
213
Main gun
76 mm (3 in)

USS Schmitt was a Buckley-class destroyer escort built for the United States Navy. She was named for Aloysius Schmitt. Bethlehem Shipbuilding Corporation's Fore River Shipyard, Quincy, Massachusetts laid her keel on 22 February 1943. She entered service on 24 July 1943, having been launched on 29 May 1943.

She was one of 98 ships of her class. The class followed the Evarts-class destroyer escort and was succeeded by the Cannon-class destroyer escort.

Displacement was 1,673 long tons. She measured 93.3 m (306 ft) long with a beam of 11.3 m (37 ft). Her designed speed was 24 knots, and she carried a complement of 213. Her main battery was of 76 mm (3.0 in) calibre.

She served with the United States Navy as USS Schmitt (DE-676) until 28 June 1949. She was in commission for 771 days of the Second World War. She was decommissioned on 28 June 1949. She was struck from the register on 1 May 1967.

She was broken up for scrap in 1976.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 × boilers
  • General Electric turbo-electric drive
  • 12000 shp
  • 2 × solid manganese-bronze 3600 lb 3-bladed propellers, 8 ft diameter, 7 ft pitch
  • 2 × rudders
Armament
  • 3 × 3"/50 caliber guns
  • 1 × quad 1.1"/75 caliber gun
  • 8 × single 20 mm guns
  • 1 × triple 21-inch (533 mm) torpedo tubes
  • 8 × K-gun depth charge projectors
  • 2 × depth charge tracks

Sister ships

73 more in the class

Sources

  • Facts harvested from USS Schmitt on Wikipedia. Figures only — no wording is taken from it.
  • Photograph: U.S. Navy — U.S. Navy photo [1] from Navsource.org — Public domain — Wikimedia Commons
