Recognition Guide Warships of the Second World War
Imperial Japanese Navy — Cruiser

Japanese cruiser Kinu

Nagara-class cruiser

Japanese cruiser Kinu

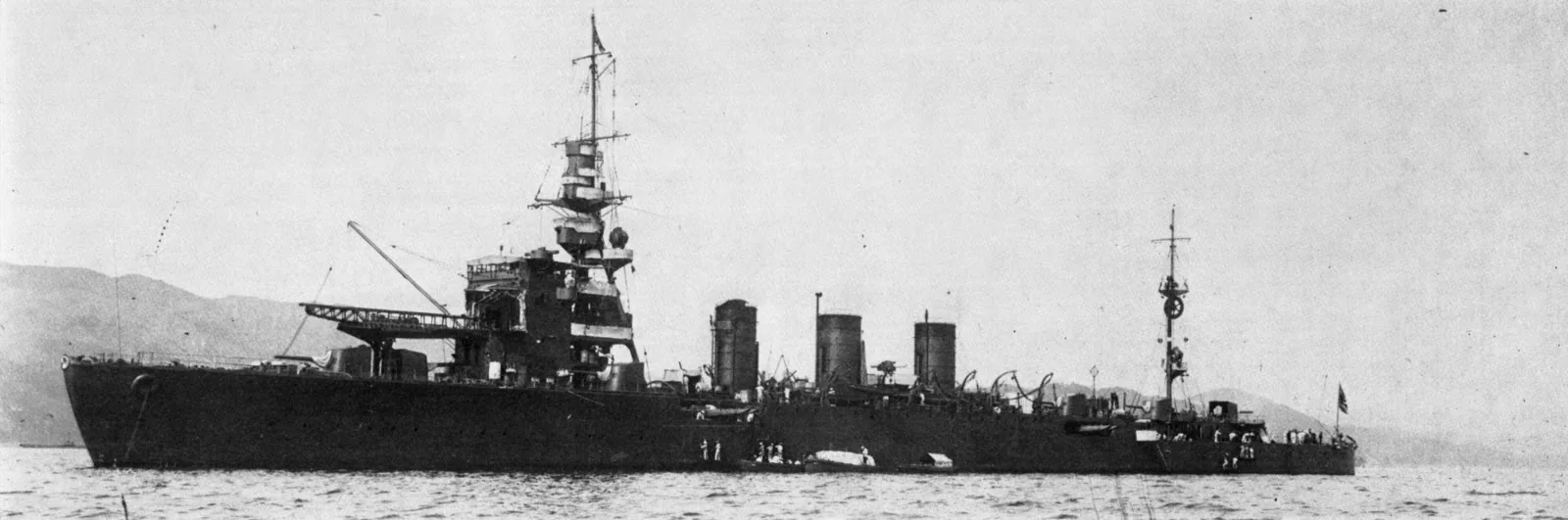

Unknown author — Mikasa Memorial Museum — Public domain — Wikimedia Commons Plate Japanese light cruiser Kinu off Kyushu in 1931.

Service

  1. Imperial Japanese Navy as Kinu10 November 1922 — 20 December 19441,937 days of the war
Nagara-class cruiser Particulars
Name
Kinu
Namesake
Kinu River
Builder
Kawasaki Shipyards, Kobe
Ordered
1920
Laid down
17 January 1921
Launched
29 May 1922
Commissioned
10 November 1922
Struck
20 December 1944
Fate
Sunk 26 October 1944
bombed by USN aircraft
SW of Masbate, Visayan Sea
123
By aircraft (1944)
Status
Wreck

Specifications

Displacement, standard
5,088 long tons (5,170 t)
Displacement, full load
5,832 long tons (5,926 t)
Length
162.76 m (534 ft)
Beam
14.63 m (48 ft)
Draught
4.88 m (16 ft)
Speed
36 knots (66.7 km/h, 41.4 mph)
Range
9,000 nmi (16,668 km)
Complement
438
Main gun
140 mm (5.5 in)

Kinu was a Nagara-class cruiser of the Imperial Japanese Navy. The ship was named after Kinu River. Kawasaki Shipyards, Kobe laid her keel on 17 January 1921. Launched on 29 May 1922, she entered service on 10 November 1922.

She was one of six ships of her class. The class followed the Kuma-class cruiser and was succeeded by the Japanese cruiser Yūbari (chronologically).

Displacement was 5,088 long tons standard and 5,832 long tons at full load. She measured 162.8 m (534 ft) long with a beam of 14.6 m (48 ft). Her designed speed was 36 knots, and she carried a complement of 438.

Her main battery was seven 140 mm (5.5 in) guns. Her belt armour was 60 mm (2.4 in) and her deck 30 mm. She carried one aircraft.

She was in commission for 1,937 days of the Second World War. She was struck from the register on 20 December 1944.

She was sunk on 26 October 1944 by aircraft, at 11°45′N 123°11′E. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 shaft Gihon geared turbines
  • 12 Kampon boilers
  • 90000 shp
Armament
  • (Initial)
  • 7 × 14 cm/50 3rd Year Type naval guns
  • 2 × 8 cm/40 3rd Year Type naval gun s
  • 8 × 610 mm torpedo tubes (4x2)
  • 48 naval mines
  • (Final) 5 × 14 cm/50 3rd Year Type naval guns
  • 2 × 12.7 cm/40 Type 89 naval gun s
  • 2 × triple, 2x twin Type 96 25 mm AA guns
  • 10 × Type 93 13.2 mm machine guns
  • 8 × 610 mm torpedo tubes (4x2)
Armour
  • Belt: 60 mm
  • Deck: 30 mm
Aircraft
  • 1 x floatplane
