Recognition Guide Warships of the Second World War
Imperial Japanese Navy — Cruiser

Japanese cruiser Natori

Nagara-class cruiser

Japanese cruiser Natori

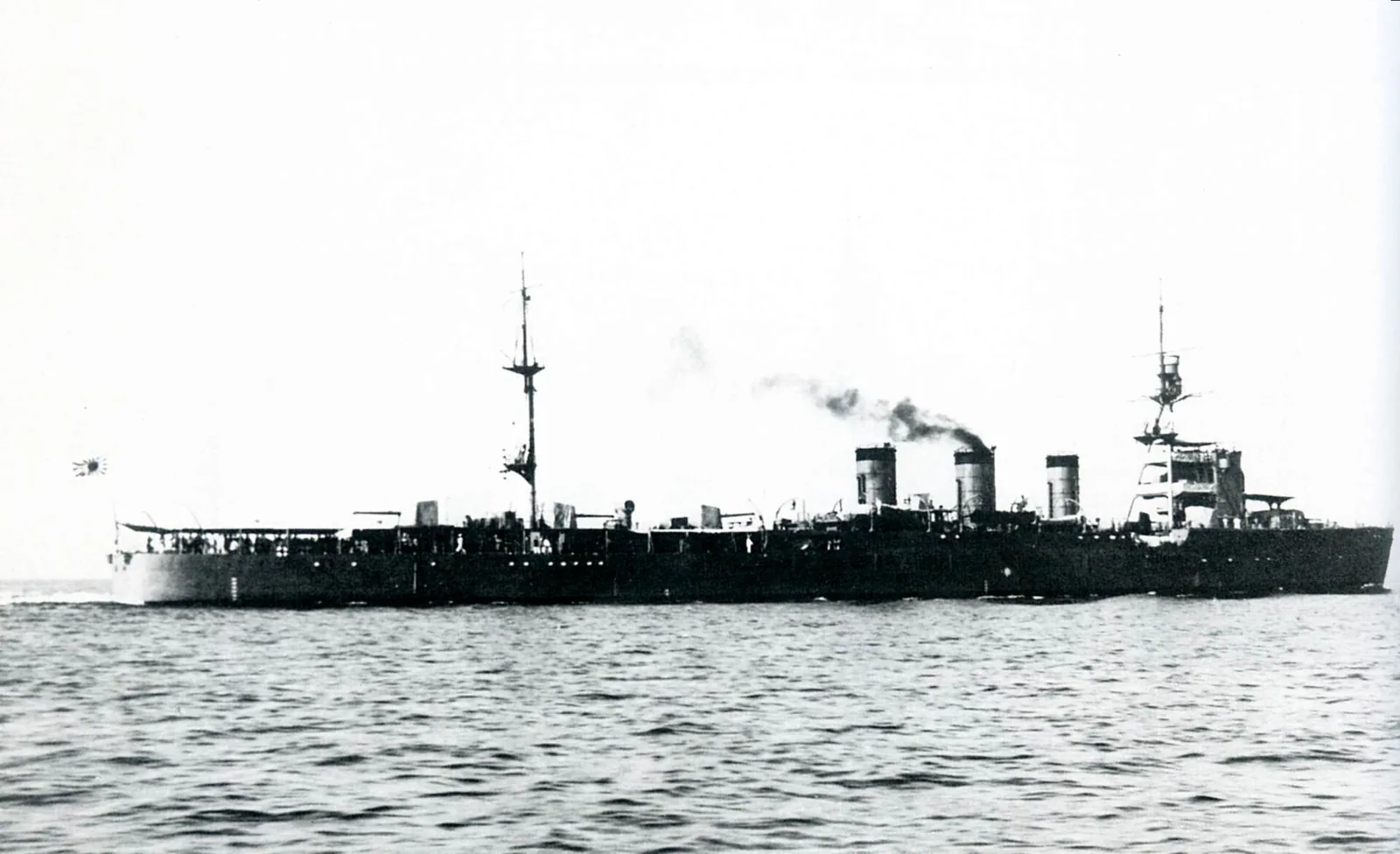

Unknown author — Mikasa Memorial Museum — Public domain — Wikimedia Commons Plate Japanese light cruiser Natori off Nagasaki in 1922.

Service

  1. Imperial Japanese Navy as Natori15 September 1922 — 10 October 19441,866 days of the war
Nagara-class cruiser Particulars
Name
Natori
Namesake
Natori River
Builder
Mitsubishi
Ordered
1919
Laid down
14 December 1920
Launched
16 February 1922
Commissioned
15 September 1922
Struck
10 October 1944
Fate
Torpedoed and sunk, 18 August 1944
By torpedo (1944)
Status
Wreck

Specifications

Displacement, standard
5,088 long tons (5,170 t)
Length
162.76 m (534 ft)
Beam
14.63 m (48 ft)
Draught
4.88 m (16 ft)
Speed
36 knots (66.7 km/h, 41.4 mph)
Range
9,000 nmi (16,668 km)
Complement
438
Main gun
140 mm (5.5 in)

Natori was a Nagara-class cruiser, operated by the Imperial Japanese Navy. The ship was named after Natori River. Her keel was laid at Mitsubishi on 14 December 1920. Launched on 16 February 1922, she entered service on 15 September 1922.

Six ships of the class were built. The class followed the Kuma-class cruiser and was succeeded by the Japanese cruiser Yūbari (chronologically).

Displacement was 5,088 long tons. She measured 162.8 m (534 ft) long with a beam of 14.6 m (48 ft). Her designed speed was 36 knots, and she carried a complement of 438. Her main battery was of 140 mm (5.5 in) calibre.

She carried one aircraft. Her machinery developed 90,000 shp through four shafts.

She was in commission for 1,866 days of the Second World War. She was struck from the register on 10 October 1944.

She was sunk on 18 August 1944 by torpedo, at 12°29′N 128°49′E. The wreck survives.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 shafts; 4 geared steam turbines
Power
  • 12 Kampon boilers
  • 90000 shp
Armament
  • 7 × 5.5-inch (140 mm) guns (7×1)
  • 2 × Type 96 25 mm AA guns
  • 6 × 13.2 mm AA guns
  • 8 × 610 mm torpedo tubes (4×2)
  • 48 naval mines
Armour
  • Belt 62 mm
  • Deck 30 mm
Aircraft
  • 1 × floatplane
