USS Corvina
Service
- as Corvina6 August 1943 — 16 November 1943102 days of the war
- Name
- USS Corvina
- Builder
- Electric Boat Company, Groton, Connecticut
- Laid down
- 21 September 1942
- Launched
- 9 May 1943
- Commissioned
- 6 August 1943
- Fate
- Sunk south of Truk Lagoon, 16 November 1943 (1943)
- Status
- Wreck
Specifications
- Displacement, surfaced
- 1,525 long tons (1,549 t)
- Displacement, submerged
- 2,424 long tons (2,463 t)
- Length
- 94.79 m (311 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 5.18 m (17 ft)
- Speed
- 21 knots (38.9 km/h, 24.2 mph)
- Range
- 11,000 nmi (20,372 km)
- Complement
- 60
- Main gun
- 76 mm (3 in)

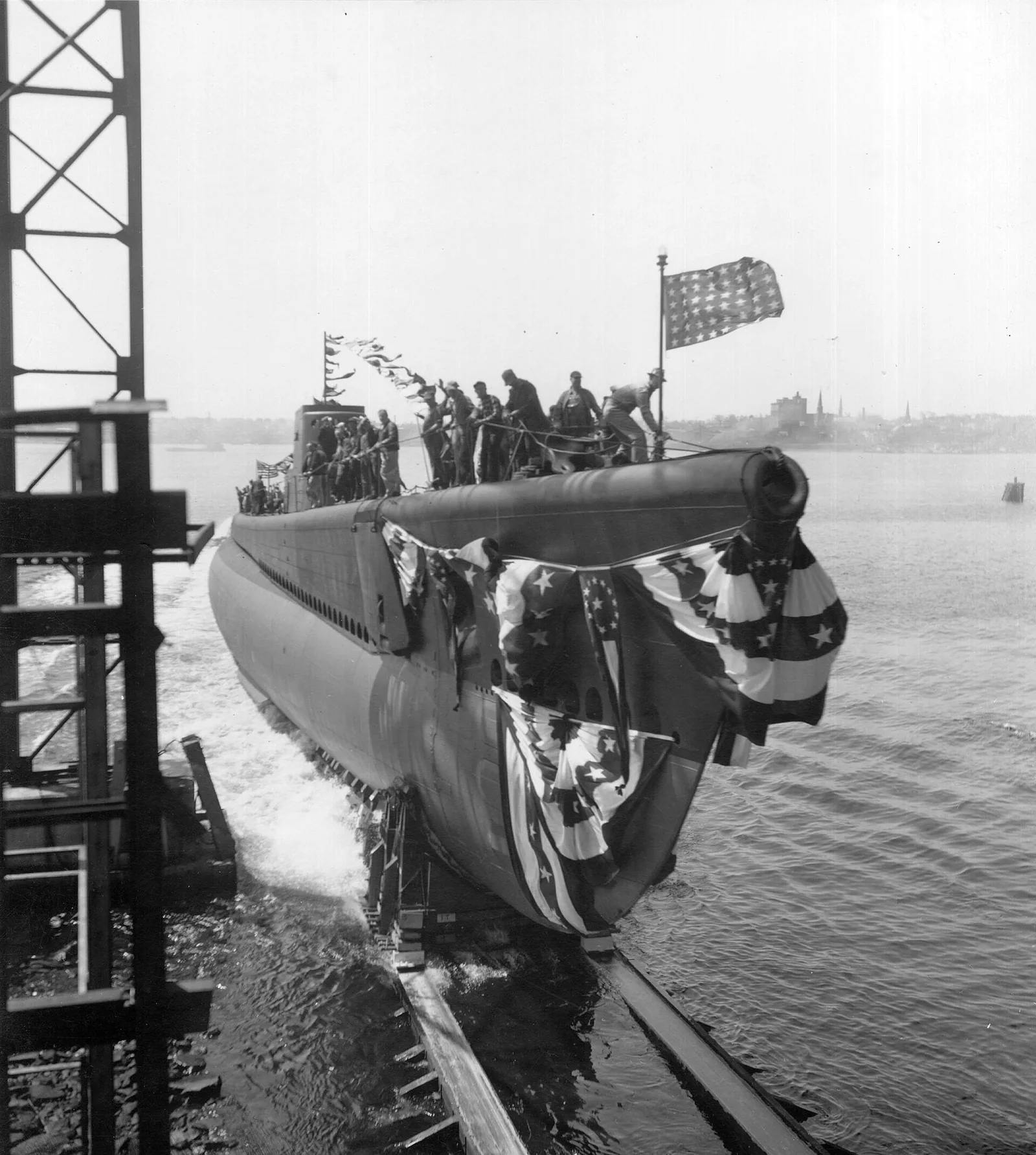

USS Corvina was a Gato-class submarine diesel-electric submarine, operated by the United States Navy. Electric Boat Company, Groton, Connecticut laid her keel on 21 September 1942. Launched on 9 May 1943, she entered service on 6 August 1943.
Her class ran to 76 ships. The class followed the Mackerel-class submarine and was succeeded by the Balao-class submarine.
The boat displaced 1,525 long tons surfaced and 2,424 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 21 knots, and she carried a complement of 60. Her main battery was of 76 mm (3.0 in) calibre.
She was in commission for 102 days of the Second World War.
She was sunk on 16 November 1943, at 5°05′N 151°10′E. The wreck survives.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- 4 × General Motors Model 16-248 V16 Diesel engines driving electric generators
- 2 × 126-cell Sargo batteries
- 4 × high-speed General Electric electric motors with reduction gears
- two propellers
- 5,400 shp (4.0 MW) surfaced
- 2,740 shp (2.0 MW) submerged
- Armament
- 10 × 21-inch (533 mm) torpedo tubes
- 6 forward, 4 aft
- 24 torpedoes
- 1 × 3-inch (76 mm) / 50 caliber deck gun
- Bofors 40 mm and Oerlikon 20 mm cannon
