German submarine U-9 (1935)

Type IIB coastal submarine

German submarine U-9 (1935)

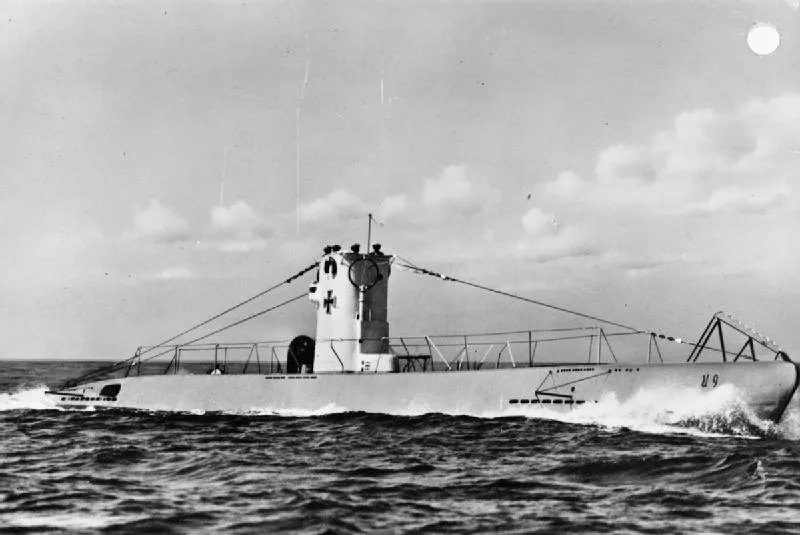

not identified. "Official photograph" — This photograph HU 1012 comes from the collections of the Imperial War Museums (collection no. 5003-04) — Public domain — Wikimedia Commons Plate — 1935 Photograph of German submarine U-9 .

Service

  1. Kriegsmarine as U-921 August 1935 — 20 August 19441,815 days of the war
  2. Soviet Navy as TS-161945 — 12 December 1946244 days of the war
Type IIB coastal submarine Particulars
Name
U-9
Pennant / hull number
1935
Builder
Germaniawerft, Kiel
Ordered
20 July 1934
Laid down
8 April 1935
Launched
30 July 1935
Commissioned
21 August 1935
Fate
Broken up on 12 December 1946 (1946)
Status
Scrapped

Specifications

Displacement, surfaced
275 long tons (279 t)
Displacement, submerged
323 long tons (328 t)
Length
42.7 m (140.1 ft) OA
Beam
4.08 m (13.4 ft)
Draught
3.9 m (12.8 ft)
Speed
13 knots (24.1 km/h, 15 mph)
Range
1,800 nmi (3,334 km)
Complement
25
Main gun
20 mm (0.8 in)

U-9 was a Type IIB coastal submarine in service with the Kriegsmarine. She carried the pennant number 1935. Her keel was laid at Germaniawerft, Kiel on 8 April 1935. Launched on 30 July 1935, she entered service on 21 August 1935.

She was one of 50 ships of her class. The class followed the CV 707-type submarine and was succeeded by the Planned:.

The boat displaced 275 long tons surfaced and 323 long tons submerged. She measured 42.7 m (140 ft) long with a beam of 4.1 m (13 ft). Her designed speed was 13 knots, and she carried a complement of 25.

Her main battery was one 20 mm (0.8 in) guns.

She served with the Kriegsmarine as U-9 until 20 August 1944. She then passed to the Soviet Navy, serving as TS-16 from 1945. She was in commission for 2,059 days of the Second World War.

She was broken up for scrap on 12 December 1946.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 shafts
  • 2 × diesel engines
  • 2 × electric motors
Power
  • 700 PS (diesels)
  • 410 PS (electric)
Armament
  • 3 × 53.3 cm torpedo tubes
  • 5 × torpedoes or up to 12 TMA or 18 TMB mines
  • 1 × 2 cm anti-aircraft gun

Sister ships

25 more in the class
