Recognition Guide Warships of the Second World War
United States Navy — Submarine

USS Brill

Balao-class submarine diesel-electric submarine

USS Brill

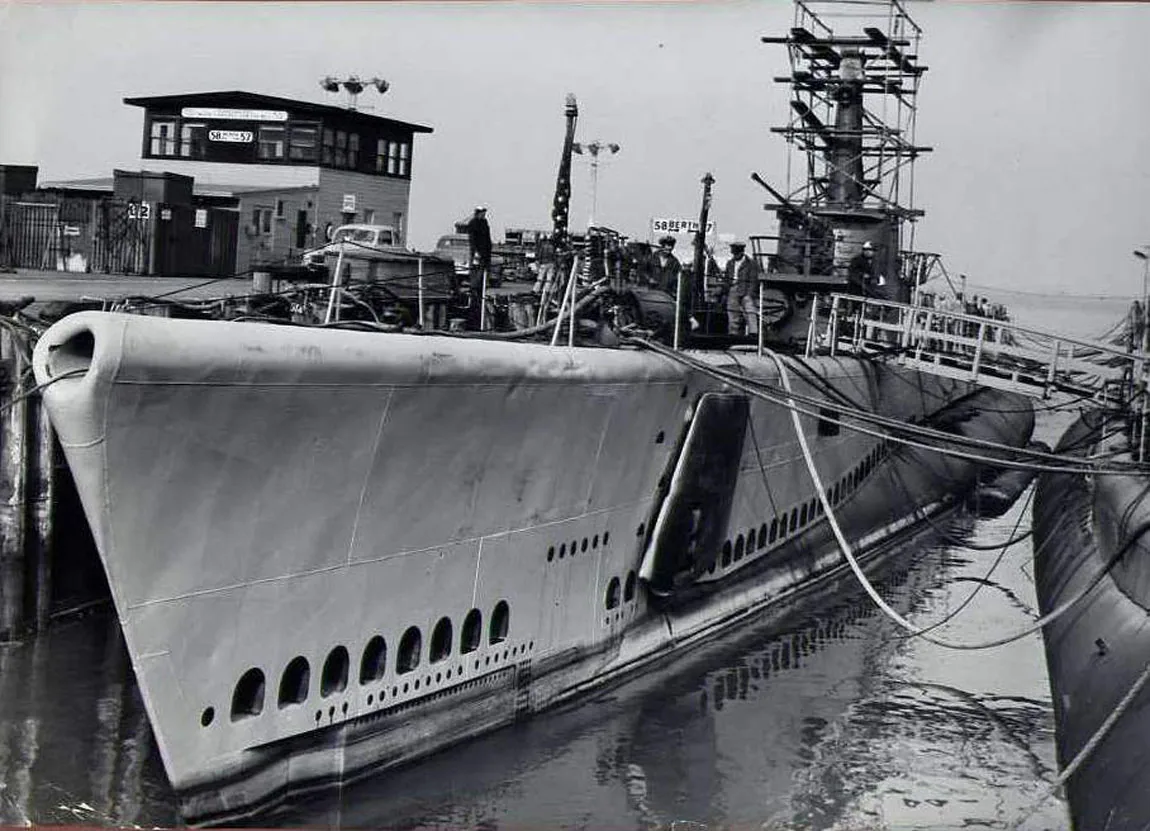

U.S. Navy photo courtesy of San Francisco Examiner via David S. Smith, text courtesy of DANFS. — Image in navsource.org — Public domain — Wikimedia Commons Plate USS Brill (SS-330) during her refit. She commenced overhaul at San Francisco Naval Shipyard until 29 September 1947. Then she departed for New London on 24 February 1948. and arrived there on 16 March 1948. She was decommissioned on 23 May 1948 and turned over to Turkey as I. İnönü (D-1) the same day.

Service

  1. United States Navy as USS Brill (SS-330)26 October 1944 — 23 May 1948311 days of the war
  2. Turkish Navy as TCG Birinci İnönü (S 330), also written 1. İnönü23 May 1948 — 29 November 1972
Balao-class submarine diesel-electric submarine Particulars
Name
USS Brill
Namesake
Brill, a European flatfish
Builder
Electric Boat Company, Groton, Connecticut
Laid down
23 September 1943
Launched
25 June 1944
Commissioned
26 October 1944
Decommissioned
23 May 1948
Struck
28 May 1948
Fate
Sold for scrapping November 1980 (1980)
Status
Scrapped

Specifications

Displacement, surfaced
1,526 long tons (1,550 t)
Displacement, submerged
2,424 long tons (2,463 t)
Length
94.79 m (311 ft)
Beam
8.23 m (27 ft)
Draught
4.88 m (16 ft)
Speed
20.3 knots (37.5 km/h, 23.3 mph)
Range
11,000 nmi (20,372 km)
Complement
10
Main gun
127 mm (5 in)

USS Brill was a Balao-class submarine diesel-electric submarine of the United States Navy. She was named for Brill. Her keel was laid at Electric Boat Company, Groton, Connecticut on 23 September 1943. Launched on 25 June 1944, she entered service on 26 October 1944.

She was one of 111 ships of her class. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.

The boat displaced 1,526 long tons surfaced and 2,424 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.

She served with the United States Navy as USS Brill (SS-330) until 23 May 1948. She then passed to the Turkish Navy, serving as TCG Birinci İnönü (S 330), also written 1. İnönü from 23 May 1948. She was in commission for 311 days of the Second World War. She was decommissioned on 23 May 1948. She was struck from the register on 28 May 1948.

She was broken up for scrap in November 1980.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 × General Motors Model 16-278A V16 diesel engines driving electrical generators
  • 2 × 126-cell Sargo batteries
  • 4 × high-speed General Electric electric motors with reduction gears
  • 2 × propellers
  • 5,400 shp (4.0 MW) surfaced
  • 2,740 shp (2.0 MW) submerged
Armament
  • 10 × 21-inch (533 mm) torpedo tubes
  • 6 forward, 4 aft
  • 24 torpedoes
  • 1 × 5-inch (127 mm) / 25 caliber deck gun
  • Bofors 40 mm and Oerlikon 20 mm cannon

Sister ships

86 more in the class

Sources

  • Facts harvested from USS Brill on Wikipedia. Figures only — no wording is taken from it.
  • Photograph: U.S. Navy photo courtesy of San Francisco Examiner via David S. Smith, text courtesy of DANFS. — Image in navsource.org — Public domain — Wikimedia Commons
