USS Capelin
Service
- as Capelin4 June 1943 — 2 December 1943181 days of the war
- Name
- USS Capelin
- Builder
- Portsmouth Naval Shipyard, Kittery, Maine
- Laid down
- 14 September 1942
- Launched
- 20 January 1943
- Commissioned
- 4 June 1943
- Fate
- Missing north of Sulawesi after 2 December 1943 (1943)
- Status
- Unknown
Specifications
- Displacement, surfaced
- 1,526 long tons (1,550 t)
- Displacement, submerged
- 2,414 long tons (2,453 t)
- Length
- 94.79 m (311 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 4.88 m (16 ft)
- Speed
- 20.3 knots (37.5 km/h, 23.3 mph)
- Range
- 10,799 nmi (20,000 km)
- Complement
- 10
- Main gun
- 102 mm (4 in)
USS Capelin was a Balao-class diesel-electric submarine, operated by the United States Navy. Her keel was laid at Portsmouth Naval Shipyard, Kittery, Maine on 14 September 1942. Launched on 20 January 1943, she entered service on 4 June 1943.
Her class ran to 111 ships. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.
The boat displaced 1,526 long tons surfaced and 2,414 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 102 mm (4.0 in) calibre.
She was in commission for 181 days of the Second World War.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- 4 × General Motors Model 16-248 V16 Diesel engines driving electric generators
- 2 × 126-cell Sargo batteries
- 4 × high-speed General Electric electric motors with reduction gears
- two propellers
- 5,400 shp (4.0 MW) surfaced
- 2,740 shp (2.0 MW) submerged
- Armament
- 10 × 21-inch (533 mm) torpedo tubes
- 6 forward, 4 aft
- 24 torpedoes
- 1 × 4-inch (102 mm) / 50 caliber deck gun
- Bofors 40 mm and Oerlikon 20 mm cannon
Sister ships
- ARA Santa Fe (S-21)
- USS Apogon
- USS Archerfish (SS-311)
- USS Aspro (SS-309)
- USS Atule
- USS Balao
- USS Bang
- USS Barbel (SS-316)
- USS Barbero
- USS Batfish (SS-310)
- USS Baya
- USS Becuna
- USS Bergall (SS-320)
- USS Besugo
- USS Billfish (SS-286)
- USS Blackfin
- USS Blanquillo (SS-323)
- USS Blenny
- USS Blower
- USS Blueback (SS-326)
- USS Boarfish
- USS Bowfin
- USS Brill
- USS Bugara
Sources
- Facts harvested from USS Capelin on Wikipedia. Figures only — no wording is taken from it.

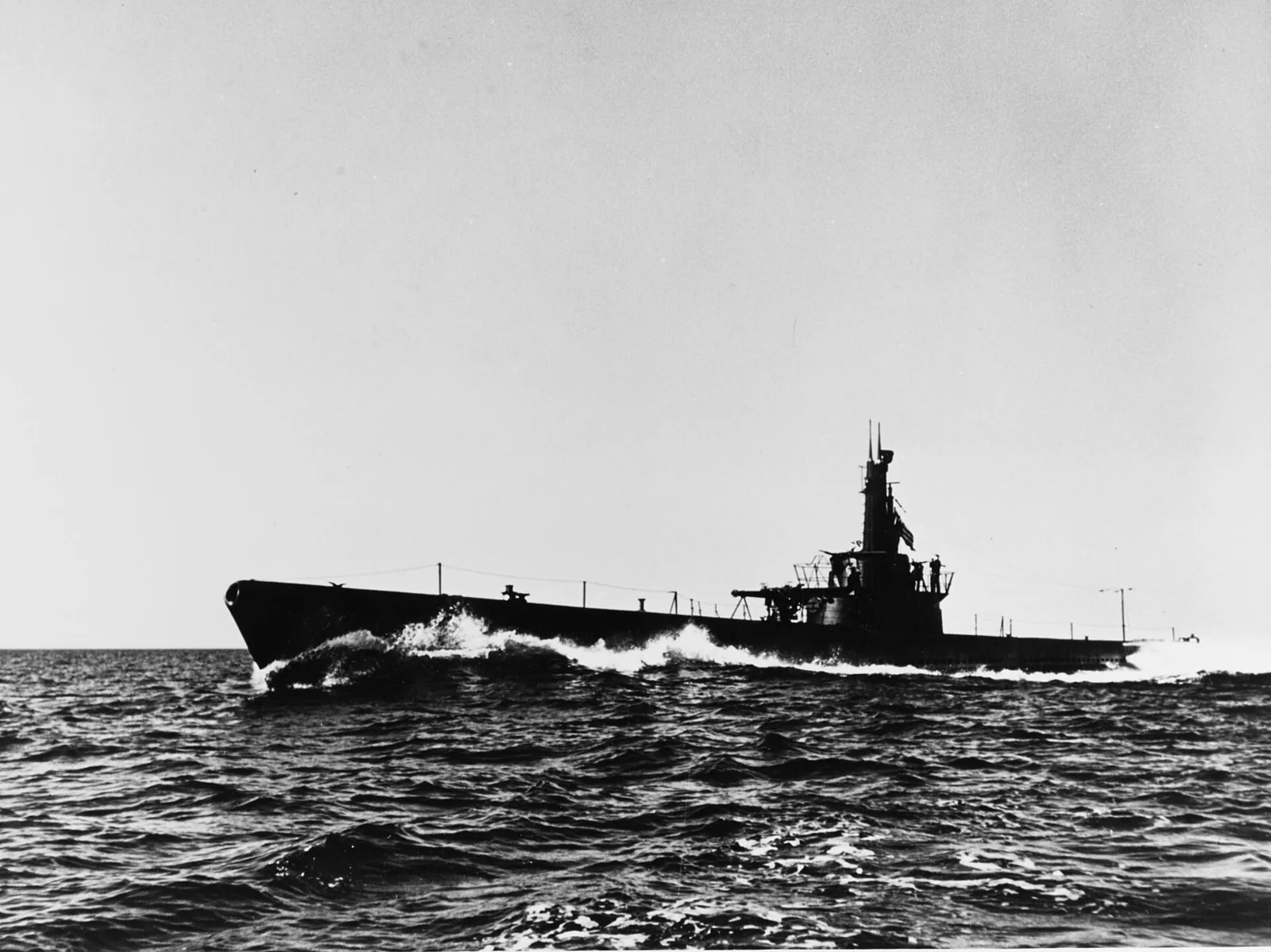

- Photograph: Lieutenant Commander Charles Jacobs, USNR. — Official U.S. Navy photo 80-G-468712 from the U.S. Navy Naval History and Heritage Command — Public domain — Wikimedia Commons
