Recognition Guide Warships of the Second World War
United States Navy — Submarine

USS Crevalle

Balao-class submarine diesel-electric submarine

USS Crevalle

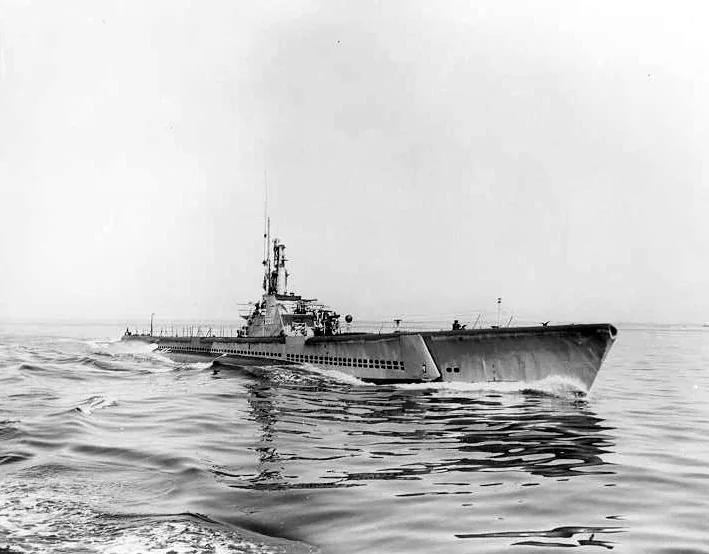

Unknown author — Unknown source — Public domain — Wikimedia Commons Plate USS_Crevalle; https://www.navsource.net/archives/08/08291.htm Crevalle (SS-291), starboard view under way, circa 1944. U.S. Navy photo, courtesy of http://ussubvetsofworldwarii.org web site.

Service

  1. United States Navy24 June 1943 — 9 March 1962801 days of the war
Balao-class submarine diesel-electric submarine Particulars
Name
USS Crevalle
Builder
Portsmouth Naval Shipyard, Kittery, Maine
Laid down
14 November 1942
Launched
22 February 1943
Commissioned
24 June 1943
Decommissioned
29 July 1946
Recommissioned
6 September 1951
Struck
15 April 1968
Fate
Sold for scrap, 17 March 1971 (1971)
Status
Scrapped

Specifications

Displacement, surfaced
1,526 long tons (1,550 t)
Displacement, submerged
2,414 long tons (2,453 t)
Length
94.79 m (311 ft)
Beam
8.23 m (27 ft)
Draught
4.88 m (16 ft)
Speed
20.3 knots (37.5 km/h, 23.3 mph)
Range
11,000 nmi (20,372 km)
Complement
10
Main gun
127 mm (5 in)

USS Crevalle was a Balao-class submarine diesel-electric submarine of the United States Navy. Her keel was laid at Portsmouth Naval Shipyard, Kittery, Maine on 14 November 1942. Launched on 22 February 1943, she entered service on 24 June 1943.

She was one of 111 ships of her class. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.

The boat displaced 1,526 long tons surfaced and 2,414 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.

She was in commission for 801 days of the Second World War. She was decommissioned on 29 July 1946. She recommissioned on 6 September 1951. She was struck from the register on 15 April 1968.

She was broken up for scrap on 17 March 1971.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 × General Motors Model 16-248 V16 Diesel engines driving electric generators
  • 2 × 126-cell Sargo batteries
  • 4 × high-speed General Electric electric motors with reduction gears
  • two propellers
  • 5,400 shp (4.0 MW) surfaced
  • 2,740 shp (2.0 MW) submerged
Armament
  • 10 × 21-inch (533 mm) torpedo tubes
  • 6 forward, 4 aft
  • 24 torpedoes
  • 1 × 5-inch (127 mm) / 25 caliber deck gun
  • Bofors 40 mm and Oerlikon 20 mm cannon

Sister ships

86 more in the class

Sources

  • Facts harvested from USS Crevalle on Wikipedia. Figures only — no wording is taken from it.
  • Photograph: Unknown author — Unknown source — Public domain — Wikimedia Commons
