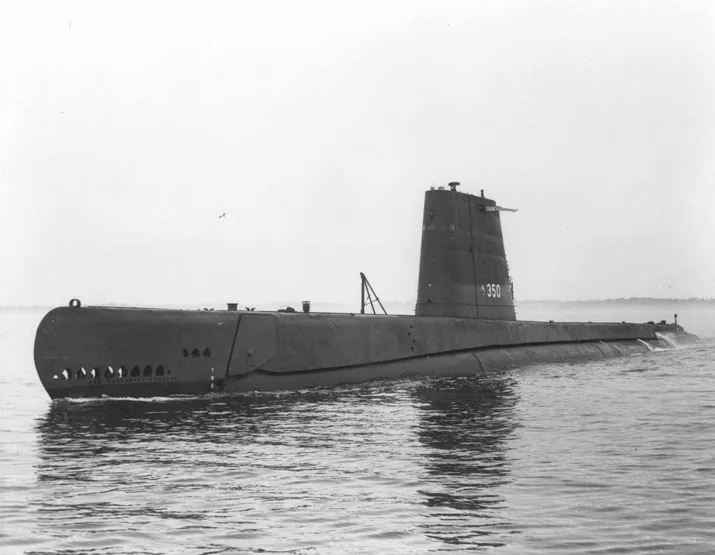

USS Dogfish
Service
- as USS Dogfish (SS-350)29 April 1946 — 28 July 1972
- as Guanabara (S-10)28 July 1972 — 1983
- Name
- USS Dogfish
- Builder
- Electric Boat Company, Groton, Connecticut
- Laid down
- 22 June 1944
- Launched
- 27 October 1945
- Commissioned
- 29 April 1946
- Struck
- 28 July 1972
- Fate
- Scrapped, 1983 (1983)
- Status
- Scrapped
Specifications — As built
- Displacement, surfaced
- 1,526 long tons (1,550 t)
- Displacement, submerged
- 2,424 long tons (2,463 t)
- Length
- 94.79 m (311 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 4.88 m (16 ft)
- Speed
- 20.3 knots (37.5 km/h, 23.3 mph)
- Range
- 10,799 nmi (20,000 km)
- Complement
- 10
- Main gun
- 127 mm (5 in)
USS Dogfish was a Balao-class diesel-electric submarine of the United States Navy. Her keel was laid at Electric Boat Company, Groton, Connecticut on 22 June 1944. Launched on 27 October 1945, she entered service on 29 April 1946.
111 ships of the class were built. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.
The boat displaced 1,526 long tons surfaced and 2,424 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.
She served with the United States Navy as USS Dogfish (SS-350) until 28 July 1972. She then passed to the Brazilian Navy, serving as Guanabara (S-10) from 28 July 1972. She was struck from the register on 28 July 1972.
She was broken up for scrap in 1983.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
This vessel is recorded in 2 configurations. Wartime refits changed armament and complement substantially, so each is kept separately rather than averaged into one set of figures. The figures above are as built.
As built
- Propulsion
- 4 × General Motors Model 16-278A V16 diesel engines driving electrical generators
- 2 × 126-cell Sargo batteries
- 4 × high-speed General Electric electric motors with reduction gears
- 2 × propellers
- 5,400 shp (4.0 MW) surfaced
- 2,740 shp (2.0 MW) submerged
- Armament
- 10 × 21-inch (533 mm) torpedo tubes
- 6 forward, 4 aft
- 24 torpedoes
- 1 × 5-inch (127 mm) / 25 caliber deck gun
- Bofors 40 mm and Oerlikon 20 mm cannon
Guppy II
- Displacement, surfaced
- 1,870 long tons (1,900 t)
- Displacement, submerged
- 2,440 long tons (2,479 t)
- Length
- 93.57 m (307 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 5.18 m (17 ft)
- Speed
- 18 knots (33.3 km/h, 20.7 mph)
- Range
- 15,119 nmi (28,000 km)
- Complement
- 9
- Propulsion
- Snorkel added
- Batteries upgraded to GUPPY type, capacity expanded to 504 cells (1 × 184 cell, 1 × 68 cell, and 2 × 126 cell batteries)
- 4 × high-speed electric motors replaced with 2 × low-speed direct drive electric motors
- Armament
- 10 × 21 inch (533 mm) torpedo tubes
- (six forward, four aft)
- all guns removed
