Recognition Guide Warships of the Second World War
United States Navy — Submarine

USS Icefish

Balao-class submarine diesel-electric submarine

USS Icefish

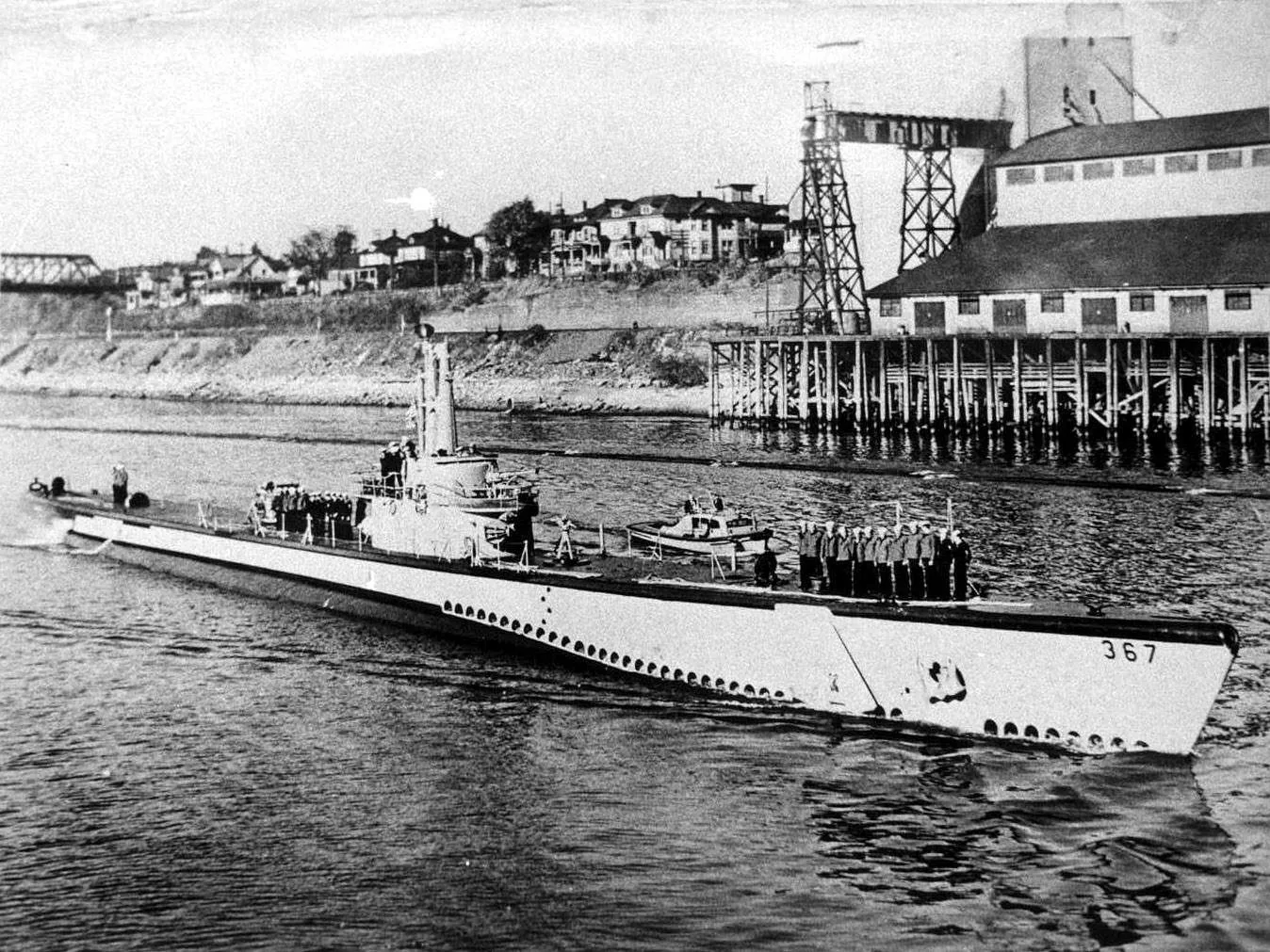

Unknown author — Unknown source — Public domain — Wikimedia Commons Plate USS_Icefish; https://www.navsource.net/archives/08/08367.htm Icefish (SS-367) Portland, Oregon September, 1945. USN photo courtesy of http://ussubvetsofwwii.org .

Service

  1. United States Navy as USS Icefish (SS-367)10 June 1944 — 15 July 1971449 days of the war
  2. Royal Netherlands Navy as HNLMS Walrus (S802)21 February 1953 — 15 July 1971
Balao-class submarine diesel-electric submarine Particulars
Name
USS Icefish
Builder
Manitowoc Shipbuilding Co., Manitowoc, Wisconsin
Laid down
4 September 1943
Launched
20 February 1944
Commissioned
10 June 1944
Decommissioned
21 June 1946
Recommissioned
5 May 1952
Struck
15 July 1971
Fate
Returned to United States custody and sold for scrap, 15 August 1971 (1971)
Status
Scrapped

Specifications

Displacement, surfaced
1,526 long tons (1,550 t)
Displacement, submerged
2,424 long tons (2,463 t)
Length
94.79 m (311 ft)
Beam
8.23 m (27 ft)
Draught
4.88 m (16 ft)
Speed
20.3 knots (37.5 km/h, 23.3 mph)
Range
11,000 nmi (20,372 km)
Complement
10
Main gun
127 mm (5 in)

USS Icefish was a Balao-class submarine diesel-electric submarine in service with the United States Navy. Manitowoc Shipbuilding Co., Manitowoc, Wisconsin laid her keel on 4 September 1943. She entered service on 10 June 1944, having been launched on 20 February 1944.

111 ships of the class were built. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.

The boat displaced 1,526 long tons surfaced and 2,424 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.

She served with the United States Navy as USS Icefish (SS-367) until 15 July 1971. She then passed to the Royal Netherlands Navy, serving as HNLMS Walrus (S802) from 21 February 1953. She was in commission for 449 days of the Second World War. She was decommissioned on 21 June 1946. She recommissioned on 5 May 1952. She was struck from the register on 15 July 1971.

She was broken up for scrap on 15 August 1971.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 × General Motors Model 16-278A V16 diesel engines driving electrical generators
  • 2 × 126-cell Sargo batteries
  • 4 × high-speed General Electric electric motors with reduction gears
  • 2 × propellers
  • 5,400 shp (4.0 MW) surfaced
  • 2,740 shp (2.0 MW) submerged
Armament
  • 10 × 21-inch (533 mm) torpedo tubes
  • 6 forward, 4 aft
  • 24 torpedoes
  • 1 × 5-inch (127 mm) / 25 caliber deck gun
  • Bofors 40 mm and Oerlikon 20 mm cannon

Sister ships

86 more in the class

Sources

  • Facts harvested from USS Icefish on Wikipedia. Figures only — no wording is taken from it.
  • Photograph: Unknown author — Unknown source — Public domain — Wikimedia Commons
