Recognition Guide Warships of the Second World War
United States Navy — Submarine SS-368

USS Jallao

Balao-class submarine diesel-electric submarine

USS Jallao

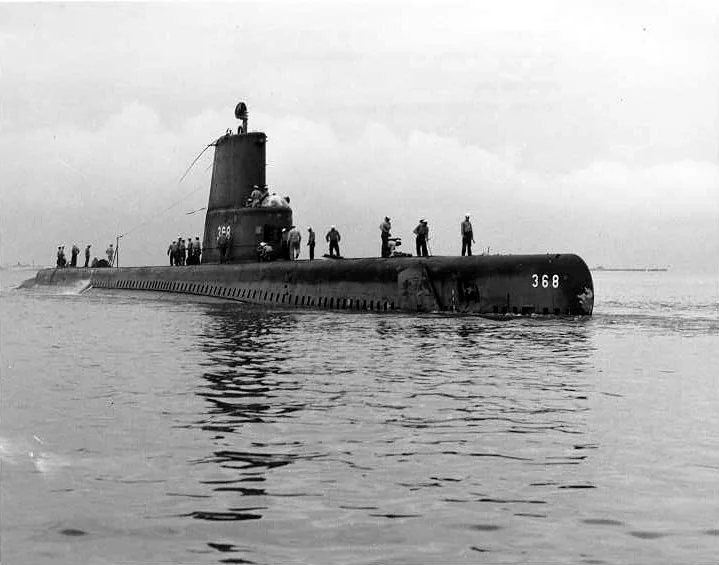

Unknown author — Unknown source — Public domain — Wikimedia Commons Plate — SS-368 USS_Jallao; https://www.navsource.net/archives/08/08368.htm Jallao (SS-368), after Guppy IIA conversion underway, mid 1950's, location unknown. Transferred to the Spanish Navy in 1975 and renamed S-35 Narciso Monturiol (not to be confused with S-33 Narciso Monturiol) USN photo courtesy of http://ussubvetsofwwii.org .

Service

  1. United States Navy as USS Jallao8 July 1944 — 26 June 1974421 days of the war
  2. Spanish Navy as Narciso Monturiol26 June 1974 — 12 December 1984
Full service history About 946 words
Balao-class submarine diesel-electric submarine Particulars
Name
USS Jallao
Pennant / hull number
SS-368
Namesake
Jallao
Builder
Manitowoc Shipbuilding Company, Manitowoc, Wisconsin
Laid down
29 September 1943
Launched
12 March 1944
Commissioned
8 July 1944
Decommissioned
30 September 1946
Recommissioned
4 December 1953
Struck
26 June 1974
Fate
Scuttled off Cartagena, Spain, 1985 (1985)
Status
Wreck

Specifications — As built

Displacement, surfaced
1,526 long tons (1,550 t)
Displacement, submerged
2,424 long tons (2,463 t)
Length
94.79 m (311 ft)
Beam
8.23 m (27 ft)
Draught
4.88 m (16 ft)
Speed
20.3 knots (37.5 km/h, 23.3 mph)
Range
11,000 nmi (20,372 km)
Complement
10
Main gun
127 mm (5 in)

Jallao (SS-368) was laid down on 29 September 1943 at Manitowoc, Wisc., by Manitowoc Shipbuilding Co.; launched on 12 March 1944; sponsored by Mrs. Oliver G. Kirk; and commissioned on 8 July 1944, Lt. Cmdr. Joseph B. Icenhower in command.

After spending most of July in training, Jallao departed Manitowoc on 26 July 1944 for Chicago, Ill., where she entered a floating dry dock for the trip down the Mississippi River to New Orleans, La. She subsequently departed New Orleans on 6 August, and, after transiting the Panama Canal, ultimately arrived at Pearl Harbor on 22 September.

Following additional training, the submarine sailed on 9 October 1944 for her first war patrol, operating with Pintado (SS-387) and Atule (SS-403) in a coordinated attack group known as “Clarey’s Crushers.” At first, the boats proceeded toward Luzon Strait, but, during the Battle for Leyte Gulf late in October, they received orders to take up scouting positions between the Philippines and Japan to cut off any crippled Japanese warships struggling home after their defeat at the Battle of Cape Engaño. On the evening of 25 October, Jallao came across the damaged light cruiser Tama and moved in to attack. She fired seven torpedoes, of which three hit and sent the Japanese warship to the bottom. After this notable success on her maiden patrol, Jallao continued her search until 28 November, returning to Majuro 10 December.

Continue to the full service history About 946 words

From the Dictionary of American Naval Fighting Ships, compiled by the Naval History and Heritage Command (Jallao (SS-368)). A work of the United States Government, in the public domain.

Armament and machinery

This vessel is recorded in 2 configurations. Wartime refits changed armament and complement substantially, so each is kept separately rather than averaged into one set of figures. The figures above are as built.

As built
Propulsion
  • 4 × General Motors Model 16-278A V16 diesel engines driving electrical generators
  • 2 × 126-cell Sargo batteries
  • 4 × high-speed General Electric electric motors with reduction gears
  • 2 × propellers
  • 5,400 shp (4.0 MW) surfaced
  • 2,740 shp (2.0 MW) submerged
Armament
  • 10 × 21-inch (533 mm) torpedo tubes
  • 6 forward, 4 aft
  • 24 torpedoes
  • 1 × 5-inch (127 mm) / 25 caliber deck gun
  • Bofors 40 mm and Oerlikon 20 mm cannon
Guppy IIA
Displacement, surfaced
1,848 long tons (1,878 t)
Displacement, submerged
2,440 long tons (2,479 t)
Length
93.57 m (307 ft)
Beam
8.23 m (27 ft)
Draught
5.18 m (17 ft)
Speed
17 knots (31.5 km/h, 19.6 mph)
Propulsion
  • Snorkel added
  • One diesel engine and generator removed
  • Batteries upgraded to Sargo II
Armament
  • 10 × 21 inch (533 mm) torpedo tubes
  • (six forward, four aft)
  • all guns removed

Sister ships

86 more in the class

Sources

  • Facts harvested from USS Jallao on Wikipedia. Figures only — no wording is taken from it.
  • Service history reproduced verbatim from Jallao (SS-368) , Dictionary of American Naval Fighting Ships — public domain, a work of the United States Government.
  • Photograph: Unknown author — Unknown source — Public domain — Wikimedia Commons
