Recognition Guide Warships of the Second World War
United States Navy — Submarine

USS Lamprey

Balao-class submarine diesel-electric submarine

USS Lamprey

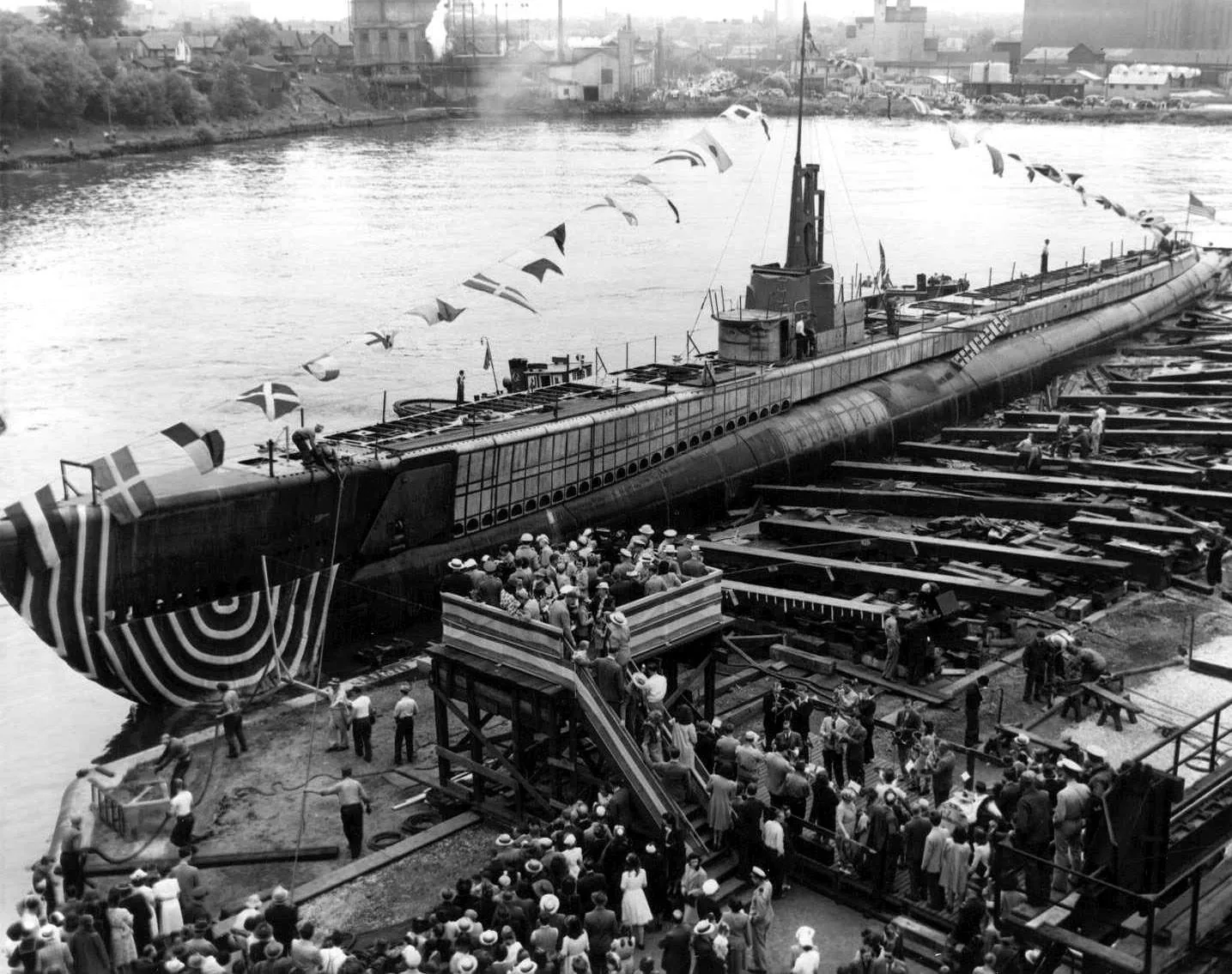

Unknown author — Public domain — Wikimedia Commons Plate

Service

  1. United States Navy as USS Lamprey (SS-372)17 November 1944 — 21 August 1960289 days of the war
  2. Argentine Navy as ARA Santiago del Estero (S-12)3 November 1960 — 1971
Balao-class submarine diesel-electric submarine Particulars
Name
USS Lamprey
Builder
Manitowoc Shipbuilding Company, Manitowoc, Wisconsin
Laid down
22 February 1944
Launched
18 June 1944
Commissioned
17 November 1944
Decommissioned
3 June 1946
Recommissioned
1960
Struck
1 September 1971
Fate
Broken up 1974 for use as spare parts (1974)
Status
Scrapped

Specifications

Displacement, surfaced
1,526 long tons (1,550 t)
Displacement, submerged
2,424 long tons (2,463 t)
Length
94.79 m (311 ft)
Beam
8.23 m (27 ft)
Draught
4.88 m (16 ft)
Speed
20.3 knots (37.5 km/h, 23.3 mph)
Range
11,000 nmi (20,372 km)
Complement
10
Main gun
127 mm (5 in)

USS Lamprey was a Balao-class submarine diesel-electric submarine built for the United States Navy. Her keel was laid at Manitowoc Shipbuilding Company, Manitowoc, Wisconsin on 22 February 1944. She entered service on 17 November 1944, having been launched on 18 June 1944.

Her class ran to 111 ships. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.

The boat displaced 1,526 long tons surfaced and 2,424 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.

She served with the United States Navy as USS Lamprey (SS-372) until 21 August 1960. She then passed to the Argentine Navy, serving as ARA Santiago del Estero (S-12) from 3 November 1960. She was in commission for 289 days of the Second World War. She was decommissioned on 3 June 1946. She recommissioned in 1960. She was struck from the register on 1 September 1971.

She was broken up for scrap in 1974.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 4 × General Motors Model 16-278A V16 diesel engines driving electrical generators
  • 2 × 126-cell Sargo batteries
  • 4 × high-speed General Electric electric motors with reduction gears
  • 2 × propellers
  • 5,400 shp (4.0 MW) surfaced
  • 2,740 shp (2.0 MW) submerged
Armament
  • 10 × 21-inch (533 mm) torpedo tubes
  • 6 forward, 4 aft
  • 24 torpedoes
  • 1 × 5-inch (127 mm) / 25 caliber deck gun
  • Bofors 40 mm and Oerlikon 20 mm cannon

Sister ships

86 more in the class

Sources

  • Facts harvested from USS Lamprey on Wikipedia. Figures only — no wording is taken from it.
  • Photograph: Unknown author — Public domain — Wikimedia Commons
