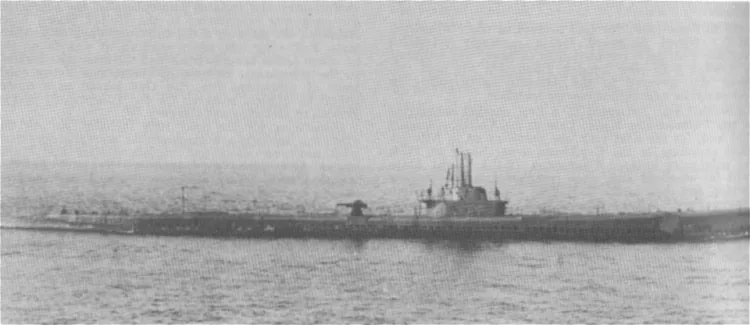

USS Sea Robin
Service
- as USS Sea Robin7 August 1944 — 1 October 1970391 days of the war
- Name
- USS Sea Robin
- Builder
- Portsmouth Naval Shipyard, Kittery, Maine
- Laid down
- 1 March 1944
- Launched
- 25 May 1944
- Commissioned
- 7 August 1944
- Decommissioned
- 1 October 1970
- Struck
- 1 October 1970
- Fate
- Sold for scrap, 3 June 1971 (1971)
- Status
- Scrapped
Specifications — As completed
- Length
- 94.79 m (311 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 4.88 m (16 ft)
- Speed
- 20.3 knots (37.5 km/h, 23.3 mph)
- Range
- 11,000 nmi (20,372 km)
- Complement
- 10
- Main gun
- 127 mm (5 in)
USS Sea Robin was a Balao-class submarine diesel-electric submarine, operated by the United States Navy. Her keel was laid at Portsmouth Naval Shipyard, Kittery, Maine on 1 March 1944. Launched on 25 May 1944, she entered service on 7 August 1944.
111 ships of the class were built. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.
The boat displaced 1,830 long tons surfaced. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.
She was in commission for 391 days of the Second World War. She was decommissioned on 1 October 1970. She was struck from the register on 1 October 1970.
She was broken up for scrap on 3 June 1971.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
This vessel is recorded in 2 configurations. Wartime refits changed armament and complement substantially, so each is kept separately rather than averaged into one set of figures. The figures above are as built.
As completed
- Propulsion
- 4 × Fairbanks-Morse Model 38D8-⅛ 10-cylinder opposed piston diesel engines driving electrical generators
- 2 × 126-cell Sargo batteries
- 2 × low-speed direct-drive Elliott electric motors
- two propellers
- 5,400 shp (4.0 MW) surfaced
- 2,740 shp (2.0 MW) submerged
- Armament
- 10 × 21-inch (533 mm) torpedo tubes
- 6 forward, 4 aft
- 24 torpedoes
- 1 × 5-inch (127 mm) / 25 caliber deck gun
- Bofors 40 mm and Oerlikon 20 mm cannon
Guppy IA
- Displacement, surfaced
- 1,830 long tons (1,859 t)
- Length
- 93.57 m (307 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 5.18 m (17 ft)
- Speed
- 17.3 knots (32 km/h, 19.9 mph)
- Range
- 17,000 nmi (31,484 km)
- Complement
- 10
- Propulsion
- Snorkel added
- Batteries upgraded to Sargo II
- Armament
- 10 × 21 inch (533 mm) torpedo tubes
- (six forward, four aft)
- all guns removed
