USS Threadfin
Service
- as USS Threadfin (SS-410)30 August 1944 — 18 August 1972370 days of the war
- as TCG 1. İnonu (S 346)18 August 1972 — in service
- Name
- USS Threadfin
- Builder
- Portsmouth Naval Shipyard, Kittery, Maine
- Laid down
- 18 March 1944
- Launched
- 26 June 1944
- Commissioned
- 30 August 1944
- Decommissioned
- 10 December 1952
- Recommissioned
- 7 August 1953
- Struck
- 1 August 1973
- Fate
- Transferred to Turkey, 18 August 1972, sold to Turkey 1 August 1973 (1972)
- Status
- Unknown
Specifications — As completed
- Displacement, surfaced
- 1,526 long tons (1,550 t)
- Displacement, submerged
- 2,401 long tons (2,440 t)
- Length
- 94.79 m (311 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 4.88 m (16 ft)
- Speed
- 20.3 knots (37.5 km/h, 23.3 mph)
- Range
- 11,000 nmi (20,372 km)
- Complement
- 10
- Main gun
- 127 mm (5 in)
USS Threadfin was a Balao-class submarine diesel-electric submarine of the United States Navy. Portsmouth Naval Shipyard, Kittery, Maine laid her keel on 18 March 1944. She entered service on 30 August 1944, having been launched on 26 June 1944.
111 ships of the class were built. The class followed the Gato-class submarine and was succeeded by the Tench-class submarine.
The boat displaced 1,526 long tons surfaced and 2,401 long tons submerged. She measured 94.8 m (311 ft) long with a beam of 8.2 m (27 ft). Her designed speed was 20.2 knots, and she carried a complement of 10. Her main battery was of 127 mm (5 in) calibre.
She served with the United States Navy as USS Threadfin (SS-410) until 18 August 1972. She then passed to the Turkish Navy, serving as TCG 1. İnonu (S 346) from 18 August 1972. She was in commission for 370 days of the Second World War. She was decommissioned on 10 December 1952. She recommissioned on 7 August 1953. She was struck from the register on 1 August 1973.
She was transferred on 18 August 1972.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
This vessel is recorded in 2 configurations. Wartime refits changed armament and complement substantially, so each is kept separately rather than averaged into one set of figures. The figures above are as built.
As completed
- Propulsion
- 4 × Fairbanks-Morse Model 38D8-⅛ 10-cylinder opposed piston diesel engines driving electrical generators
- 2 × 126-cell Sargo batteries
- 2 × low-speed direct-drive Elliott electric motors
- two propellers
- 5,400 shp (4.0 MW) surfaced
- 2,740 shp (2.0 MW) submerged
- Armament
- 10 × 21-inch (533 mm) torpedo tubes
- 6 forward, 4 aft
- 24 torpedoes
- 1 × 5-inch (127 mm) / 25 caliber deck gun
- Bofors 40 mm and Oerlikon 20 mm cannon
Guppy IIA
- Displacement, surfaced
- 1,848 long tons (1,878 t)
- Displacement, submerged
- 2,440 long tons (2,479 t)
- Length
- 93.57 m (307 ft)
- Beam
- 8.23 m (27 ft)
- Draught
- 5.18 m (17 ft)
- Speed
- 17 knots (31.5 km/h, 19.6 mph)
- Propulsion
- Snorkel added
- One diesel engine and generator removed
- Batteries upgraded to Sargo II
- Armament
- 10 × 21 inch (533 mm) torpedo tubes
- (six forward, four aft)
- all guns removed
Sister ships
- ARA Santa Fe (S-21)
- USS Apogon
- USS Archerfish (SS-311)
- USS Aspro (SS-309)
- USS Atule
- USS Balao
- USS Bang
- USS Barbel (SS-316)
- USS Barbero
- USS Batfish (SS-310)
- USS Baya
- USS Becuna
- USS Bergall (SS-320)
- USS Besugo
- USS Billfish (SS-286)
- USS Blackfin
- USS Blanquillo (SS-323)
- USS Blenny
- USS Blower
- USS Blueback (SS-326)
- USS Boarfish
- USS Bowfin
- USS Brill
- USS Bugara
Sources
- Facts harvested from USS Threadfin on Wikipedia. Figures only — no wording is taken from it.

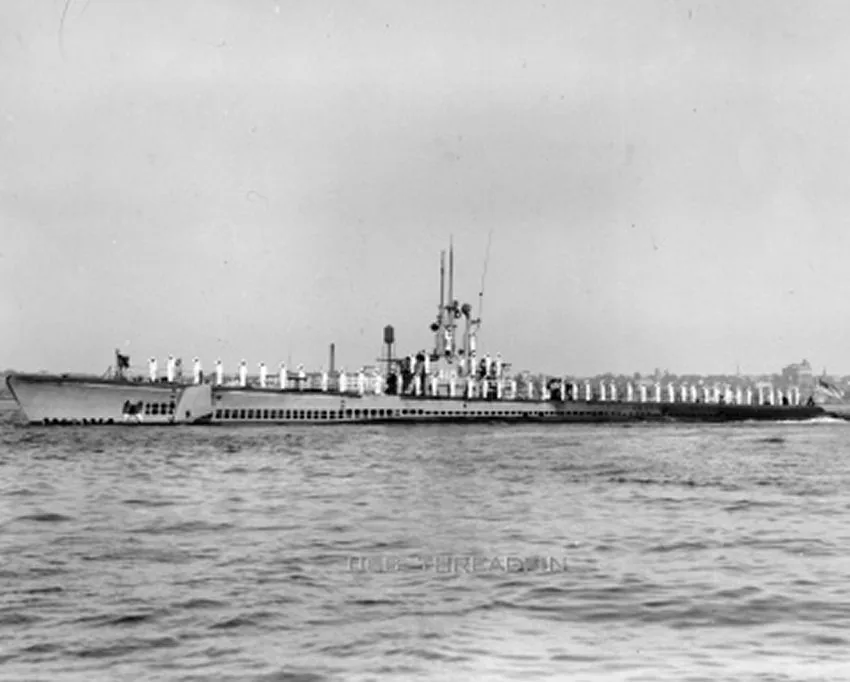

- Photograph: Unknown author — Public domain — Wikimedia Commons
