Recognition Guide Warships of the Second World War
Royal Navy — Destroyer R51

HMS Chevron

C-class destroyer (1943) destroyer

HMS Chevron

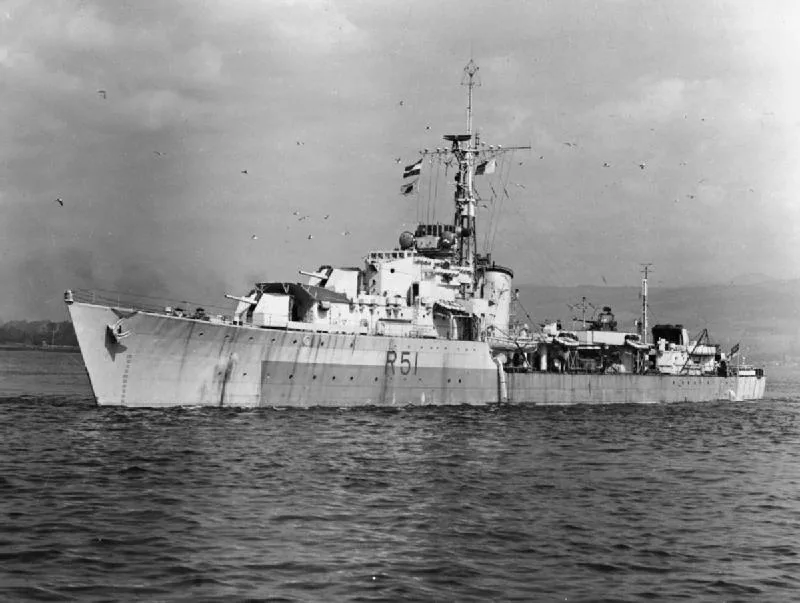

Royal Navy official photographer — This photograph FL 8019 comes from the collections of the Imperial War Museums (collection no. 8308-29) — Public domain — Wikimedia Commons Plate — R51 Photograph of British C class destroyer HMS Chevron, on the River Clyde on completion.

Service

  1. Royal Navy as HMS Chevron23 August 1945 — December 196910 days of the war
C-class destroyer (1943) destroyer Particulars
Name
HMS Chevron
Pennant / hull number
R51
Builder
Alexander Stephen and Sons Limited, (Glasgow, Scotland)
Ordered
24 July 1942
Laid down
18 March 1943
Launched
23 February 1944
Commissioned
23 August 1945
Fate
Scrapped at Inverkeithing in December 1969 (1969)
Status
Scrapped

Specifications

Displacement, standard
1,900 long tons (1,930 t)
Displacement, full load
2,535 long tons (2,576 t)
Length
110.34 m (362 ft) OA
Beam
10.67 m (35 ft)
Draught
3.05 m (10 ft)
Speed
36 knots (66.7 km/h, 41.4 mph)
Range
4,675 nmi (8,658 km)
Complement
186
Main gun
114 mm (4.5 in)

HMS Chevron was a C-class destroyer (1943) destroyer of the Royal Navy. She carried the pennant number R51. Her keel was laid at Alexander Stephen and Sons Limited, (Glasgow, Scotland) on 18 March 1943. She entered service on 23 August 1945, having been launched on 23 February 1944.

40 ships of the class were built. The class followed the W and Z-class destroyer and was succeeded by the Weapon-class destroyer.

Displacement was 1,900 long tons standard and 2,535 long tons at full load. She measured 110.3 m (362 ft) long with a beam of 10.7 m (35 ft). Her designed speed was 36 knots, and she carried a complement of 186. Her main battery was of 114 mm (4.5 in) calibre.

She was in commission for 10 days of the Second World War.

She was broken up for scrap in December 1969.

Written from the harvested record. Every figure above is sourced; the wording is this site's own.

Armament and machinery

Armament and machinery
Propulsion
  • 2 Admiralty 3-drum boilers
  • Parsons single-reduction geared steam turbines
  • 40000 shp, 2 shafts
Armament
  • 4 × QF 4.5 in L/45 guns on mounts CP Mk.V
  • 2 × Bofors 40 mm L/60 guns on twin mount "Hazemeyer" Mk.IV
  • 2 × single 2-pdr Mk VIII
  • 2 × 20 mm Oerlikon cannon
  • 8 (2 × 4) tubes for 21 inch torpedoes Mk.IX
  • 80 depth charges

Sister ships

15 more in the class
