USS R-20
R-1-class submarine
Service
- as R-2026 October 1918 — 27 September 19452,193 days of the war
- Name
- USS R-20
- Pennant / hull number
- SS-97
- Builder
- Union Iron Works, San Francisco, California
- Ordered
- 29 August 1916
- Laid down
- 4 June 1917
- Launched
- 21 January 1918
- Commissioned
- 26 October 1918
- Decommissioned
- 15 May 1931
- Recommissioned
- 22 January 1941
- Struck
- 11 October 1945
- Fate
- Sold for scrapping, 13 March 1946 (1946)
- Status
- Scrapped
Specifications
- Displacement, surfaced
- 574 long tons (583 t)
- Displacement, submerged
- 685 long tons (696 t)
- Length
- 56.69 m (186 ft)
- Beam
- 5.49 m (18 ft)
- Draught
- 4.57 m (15 ft)
- Speed
- 12.5 knots (23.2 km/h, 14.4 mph)
- Range
- 4,700 nmi (8,704 km)
- Complement
- 29
- Main gun
- 76 mm (3 in)
USS R-20 was a R-1-class submarine in service with the United States Navy. She carried the pennant number SS-97. Her keel was laid at Union Iron Works, San Francisco, California on 4 June 1917. Launched on 21 January 1918, she entered service on 26 October 1918.
The boat displaced 574 long tons surfaced and 685 long tons submerged. She measured 56.7 m (186 ft) long with a beam of 5.5 m (18 ft). Her designed speed was 12.5 knots, and she carried a complement of 29.
Her main battery was one 76 mm (3 in) guns. Her machinery developed 880 bhp.
She was in commission for 2,193 days of the Second World War. She was decommissioned on 15 May 1931. She recommissioned on 22 January 1941. She was struck from the register on 11 October 1945.
She was broken up for scrap on 13 March 1946.
Written from the harvested record. Every figure above is sourced; the wording is this site's own.
Armament and machinery
Armament and machinery
- Propulsion
- 2 × NELSECO 6-EB-14 diesel engines
- 2 × Electro-Dynamic Company electric motors
- 2 × 60-cell batteries
- 2 × Propellers
- Power
- 880 bhp diesel
- 934 hp electric
- Armament
- 4 × 21 in torpedo tubes (8 torpedoes)
- 1 × 3 in/50-caliber deck gun
Sister ships
Sources
- Facts harvested from USS R-20 on Wikipedia. Figures only — no wording is taken from it.

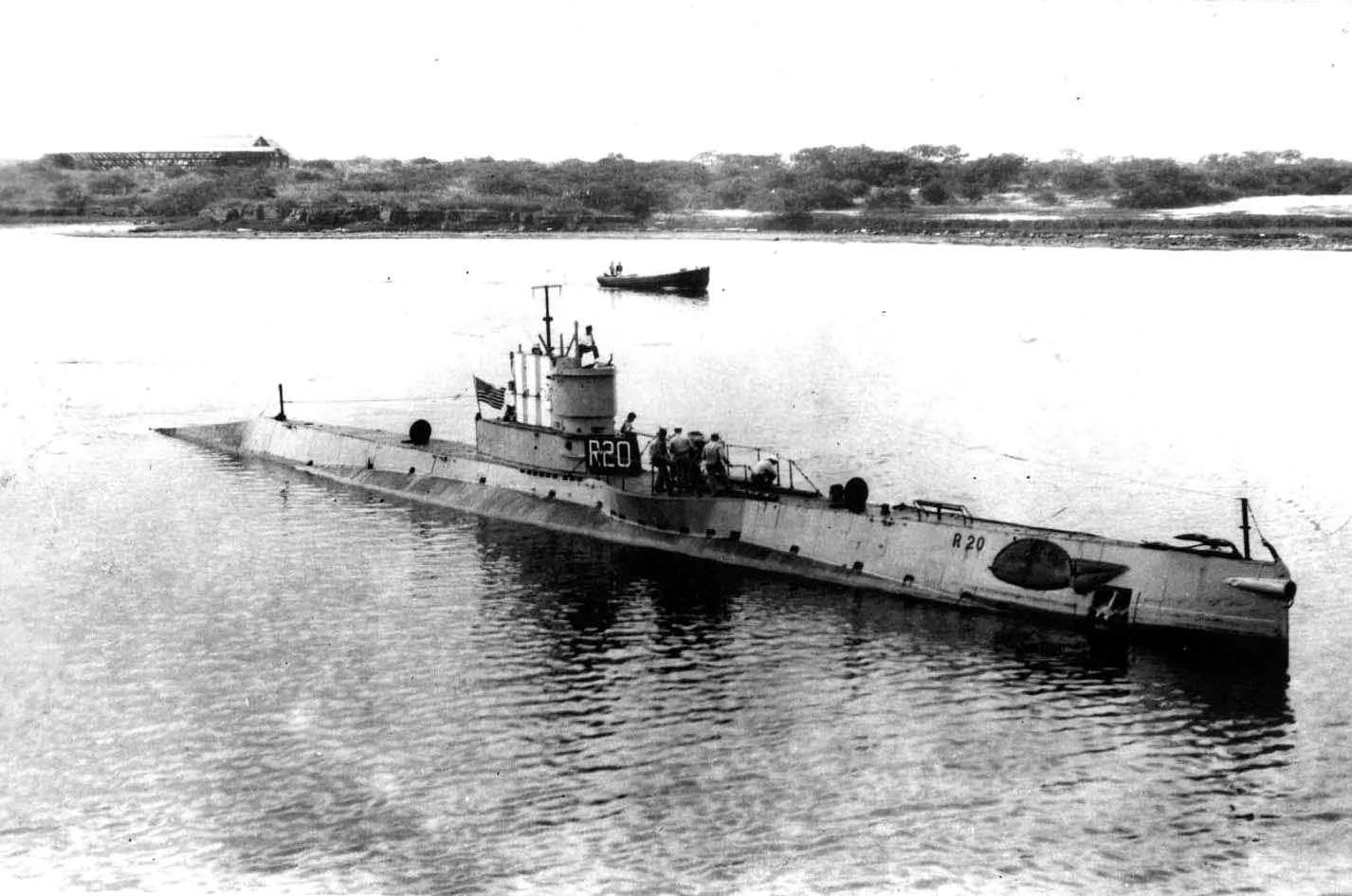

- Photograph: U.S. navy photograph — https://www.navsource.net/archives/08/08097.htm — Public domain — Wikimedia Commons
